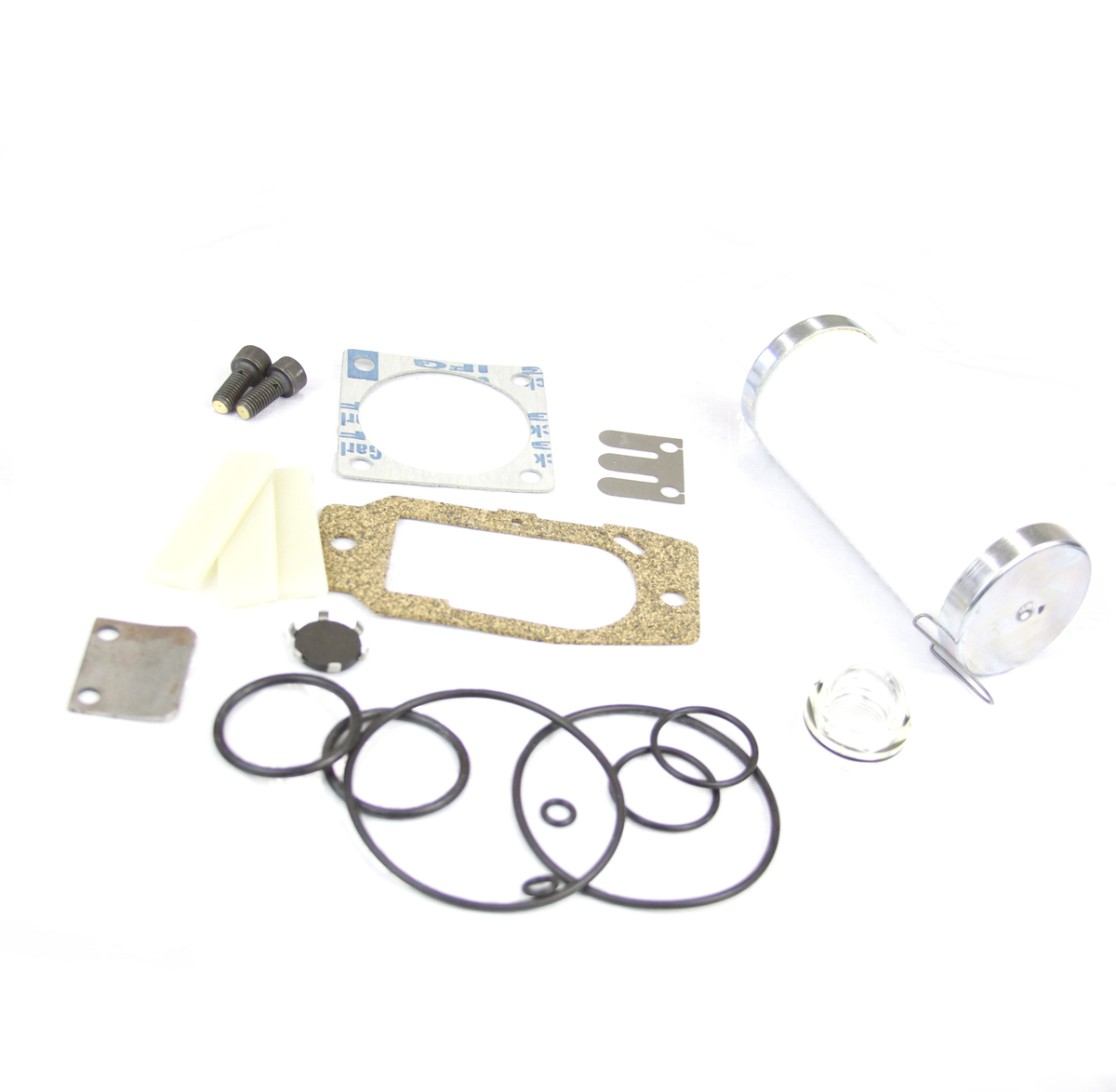

Major Repair Kit with GX Vanes Leybold Sogevac SV10B,SV16B
USD 391.00
Used on Leybold Sogevac SV10B, SV16B
Major Repair Kit with GX Vanes includes; O-rings, shaft seals, Vanes, filters, Valve plates & other components as required for major overhaul.
Major Repair Kit with GX Vanes includes; O-rings, shaft seals, Vanes, filters, Valve plates & other components as required for major overhaul.
Added to Your Shopping Cart
| Part Number | Description | Quantity | Qty in stock |
|---|---|---|---|
| PL71413240 | Outlet Gasket, IFG 5500, 2.88" SQ, Leybold SV10/16B, Part# PL71413240 | 1 | 16 |
| PL71237600 | O-ring, 6.02 x 2.6 mm - Viton, Part# PL71237600 | 2 | 56 |
| 40023 | O-ring, 34.52 x 3.53 mm - Buna, Part# 40023 | 2 | 21 |
| PL71416500 | Screw, M 8 x 1.0-Leybold Sogevac, Part# PL71416500 | 2 | 0 |
| PL71416370 | Valve Plate, Leybold Sogevac SV108 / SV16B, Part# PL71416370 | 1 | 0 |
| PL71416360 | Stop Valve, HRS- Leybold, Part# PL71416360 | 1 | 0 |
| PL71413280 | Leybold Exhaust filter Assembly, SV16B, Part# PL71413280 | 1 | 1 |
| 71413150G | Vane - GX - Leybold Sogevac, Part# 71413150G | 3 | 0 |
| PL71416430 | Flat Gasket, Cork, Leybold, Sogevac, Part# PL71416430 | 1 | 20 |
| PL71413470 | O-ring, 70 x 2.5 mm - Buna, Part# PL71413470 | 2 | 38 |
| PL71421560 | Shaft Seal, Leybold, Part# PL71421560 | 1 | 1 |
| PL71212428 | Oil Sight Glass, Leybold, Sogevac, Part# PL71212428 | 1 | 27 |
| PL71036722 | O-ring, 27 x 2.5 mm - Buna, Part# PL71036722 | 2 | 40 |
| PL71042993 | Seal, Anti-Suckback Valve, Part# PL71042993 | 1 | 23 |
General product classifications
| Part Number Cross-Reference |
71422230
23L-SV10B/16B-V |
| Compatible Brands | Leybold |
| Family | Sogevac |
| Compatible Pump Models |
SV10B
SV16B |
| Category | Repair Kits |
| Subcategory | Repair Kit |
| Country of origin | US |
| Manual page | LEYBOLD-72 |
Major Repair Kit with GX Vanes includes; O-rings, shaft seals, Vanes, filters, Valve plates & other components as required for major overhaul. Used on Pump Models SV10B, SV16B
