Major Repair Kit with GX Vanes, Leybold, Sogevac, SV280, Part# 71403581
Major Repair Kit with GX Vanes, Leybold, Sogevac, SV280, Part# 71403581

Major Repair Kit with GX Vanes, Leybold, Sogevac, SV280, Part# 71403581

71403581
USD 2,008.00

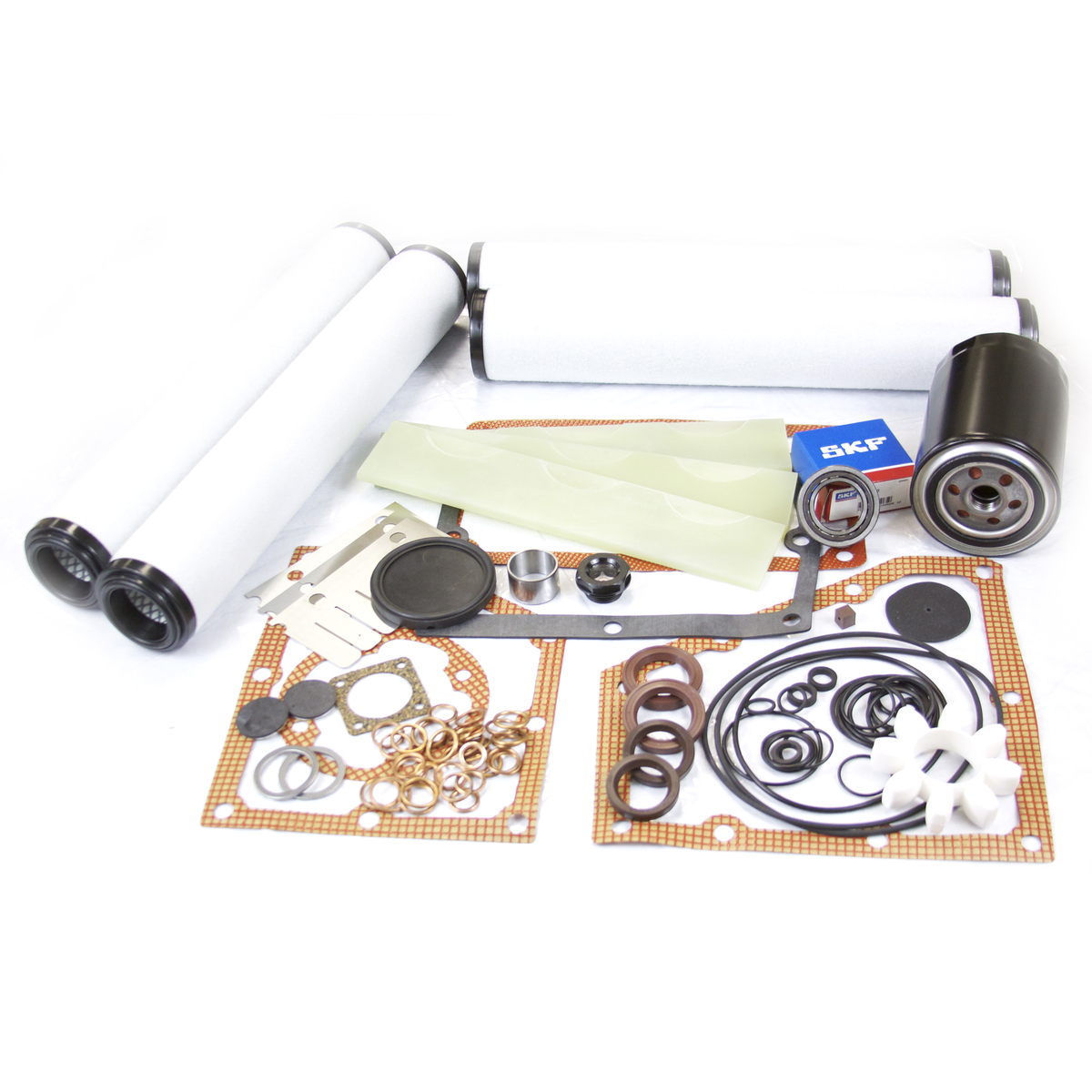

Major Repair Kit with GX Vanes is used on Leybold Sogevac SV280. for Complete kit contents O-rings & Shaft seals, Oil & Exhaust Filters, Vanes, Coupling or drive belt (as required), Valve plate(s) & Bearings (as required) for major overhaul.

0 In Stock

Click For Availability
Bill Of Material
Part Number Description Quantity Qty in stock
71412010G Leybold Vane - GX, Part# 71412010G 3 61
550045 Oil Sight Glass - 3/4", Leybold Sogevac - Part# 550045 1 16
90220900000 Spider Coupling, Rotex GR38 - Part# 90220900000 1 15
510042 Bearing Sleeve, Hardened, Leybold, Sogevac, SV180, SV280, Part# 510042 2 0
420040 Washer, Steel, Leybold, Sogevac, Part# 420040 2 73
320183 O-ring, 52 x 2.5 mm - Buna, Part# 320183 3 36
300077 Copper Crush Gasket, 18 mm-Leybold Sogevac, Part# 300077 2 233
300076 Copper Crush Gasket, 16 mm-Leybold Sogevac, Part# 300076 8 81
300075 Copper Crush Gasket, 14 mm-Leybold Sogevac, Part# 300075 12 1075
300042 Leybold Gasket, Part# 300042 1 33
300138 ring Gasket, Leybold, Sogevac, SV200, SV300, SV280, Part# 300138 4 40
23970106 O-ring, 13.3 x 2.4 mm - Viton, Part# 23970106 2 50
300074 Copper Crush Gasket, 12 mm, Leybold, Sogevac, SV200, SV300, Part# 300074 8 197
300073 Copper Crush Gasket, 10 mm- Leybold Sogevac, Part# 300073 6 172
300043 Leybold Gasket, Part# 300043 1 33
PL71212503 Float Valve Seal, Leybold, Sogevac, Part# PL71212503 1 647
PL71213243 Diaphragm, Leybold, Sogevac, Part# PL71213243 1 1
PL71212473 Gasket, Leybold Sogevac SV40 - SV300, Part# PL71212473 1 27
PL71046292 O-ring, 27 x 2 mm - Buna, Part# PL71046292 3 156
PL71064773 Leybold Exhaust Filter, Coalescing PL71064773 4 0
PL71031562 Needle Bearing, Leybold, Sogevac, SV180, SV280, Part# PL71031562 2 39
PL71032252 O-ring, 28 x 3 mm - Buna, Part# PL71032252 2 14
PL71036722 O-ring, 27 x 2.5 mm - Buna, Part# PL71036722 1 53
PL71046164 Leybold Gasket, Part# PL71046164 1 39
PL71001522 Shaft Seal, Viton - 28 x 40 x 7-Leybold Sogevac, Part# PL71001522 2 13
PL71015473 Leybold Anti-Suckback Valve Seal, Part# PL71015473 1 31
PL71017702 O-ring, 148.83 x 3.53 mm - Buna, Part# PL71017702 2 26
PL71017854 Joint Plate Gasket, Leybold, Sogevac, SV200, SV300, SV180, SV280, Part# PL71017854 1 29
PL71018048 Joint Plate Gasket, Leybold, Sogevac, SV200, SV300, Part# PL71018048 1 6
PL71018858 Oil Filter, Leybold, Sogevac, Part# PL71018858 1 9
PL71213273 Gasket, Leybold, Sogevac, SV200, SV300, Part# PL71213273 1 27
PL71217332 O-ring, 32 x 3.5 mm - Buna, Part# PL71217332 1 41
PL71217402 Busch O-Ring,Buna,22 X 3 MM Part# PL71217402 2 73
PL71218554 Valve Plate, Leybold, Sogevac, SV280, SV280, Part# PL71218554 2 39
PL71223182 Shaft Seal, 32 x 47 x 7 mm, Leybold, Sogevac, SV200, SV300, Part# PL71223182 2 194
PL71436722 O-ring, 117.07 x 3.53mm - Buna, Part# PL71436722 1 8
PL71001914 Valve Plate, Leybold, Sogevac, Part# PL71001914 2 10
Specifications

General product classifications

Part Number Cross-Reference 23L-SV280-V
Compatible Brands Leybold
Family Sogevac
Compatible Pump Models SV280
Category Repair Kits
Subcategory Major Kit
Country of origin GB
Manual page LEYBOLD-71
Product Details

Revitalize your Leybold Sogevac pump with the Major Repair Kit (Product Number 71403581) featuring GX Vanes. Crafted for precision and durability, this comprehensive kit ensures optimal pump performance. The 71403581 is a practical choice for maintaining your equipment, offering straightforward installation and extended service life. Invest in the longevity of your pump with this essential kit designed to fit seamlessly into Leybold Sogevac models. Keep your operations running smoothly with precision-engineered parts for pump maintenance.
