Major Repair Kit Leybold Sogevac SV28BI
Major Repair Kit Leybold Sogevac SV28BI

Major Repair Kit Leybold Sogevac SV28BI

PL971462690
USD 477.00

Used on Leybold Sogevac SV28BI

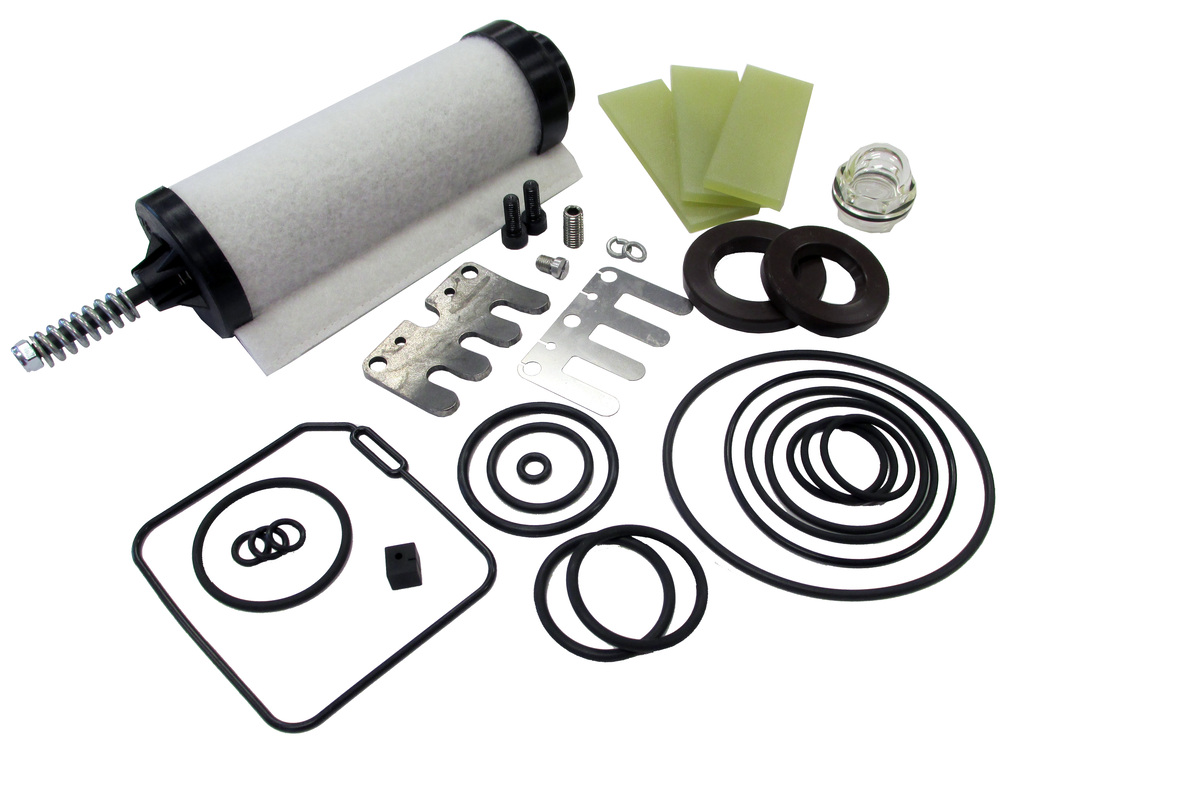

Major Kit includes; gaskets, O-rings & shaft seals, filters, Vane kit, Valve plate(s) as required.

2 In Stock

Click For Availability
Bill Of Material
Part Number Description Quantity Qty in stock
310113 Shaft Seal, Leybold, Sogevac, Part# 310113 1 18
PL71413470 O-ring, 70 x 2.5 mm - Buna, Part# PL71413470 1 38
PL71237720 O-ring, 93 x 3 mm - Viton, Part# PL71237720 1 19
320388 O-ring, 47 x 2.6 - Viton, Part# 320388 1 2
48663500 O-ring, 56 x 2.5 mm - Viton, Part# 48663500 1 44
320082 O-ring, 44.04 x 3.53 mm - Viton, Part# 320082 1 102
310112 Shaft Seal, Leybold, Sogevac, Part# 310112 1 9
300191 Formed O-ring Gasket, Leybold, Sogevac, Part# 300191 1 29
PL71416340 Leybold Exhaust filter assy, SV25B, Part# PL71416340 1 4
420057 Lock Washer, Split, M6, Leybold, Sogevac, Part# 420057 2 40
PL71418070 Set Screw Kit, Leybold, Part# PL71418070 1 8
79509 O-ring, 28 x 3 mm - Viton, Part# 79509 1 140
02126030 O-ring, 34.52 x 3.53 mm - Viton, Part# 02126030 2 89
PL71237600 O-ring, 6.02 x 2.6 mm - Viton, Part# PL71237600 1 56
4070125 O-ring, 8 x 2.0 mm - Viton, Part# 4070125 3 118
380032 Stop Valve-Leybold Sogevac, Part# 380032 1 7
380033 Plate Valve, Leybold, Sogevac, Part# 380033 1 21
400069 Should Bolt, M6x16, Leybold, Sogevac, Part# 400069 2 40
971447220S Vane - GX, Leybold, Sogevac, SV28BI, Part# 971447220S 3 11
400077 Oil Nozzle Screw, Leybold, Sogevac, Part# 400077 1 7
PL71212503 Float Valve Seal, Leybold, Sogevac, Part# PL71212503 1 528
PL71217582 O-ring, 27 x 2.5mm - Viton, Part# PL71217582 3 88
PL71237312 O-ring, 41 x 3 mm - Viton, Part# PL71237312 1 2
PL71212428 Oil Sight Glass, Leybold, Sogevac, Part# PL71212428 1 27
Specifications

General product classifications

Part Number Cross-Reference 971462690
23L-SV28BI-V
Compatible Brands Leybold
Family Sogevac
Compatible Pump Models SV28BI
Category Repair Kits
Subcategory Major Kit
Country of origin US
Manual page LEYBOLD-73
Product Details

Major Kit includes; gaskets, O-rings & shaft seals, filters, Vane kit, and Valve plate(s), as required. Used on Pump Models SV28BI
