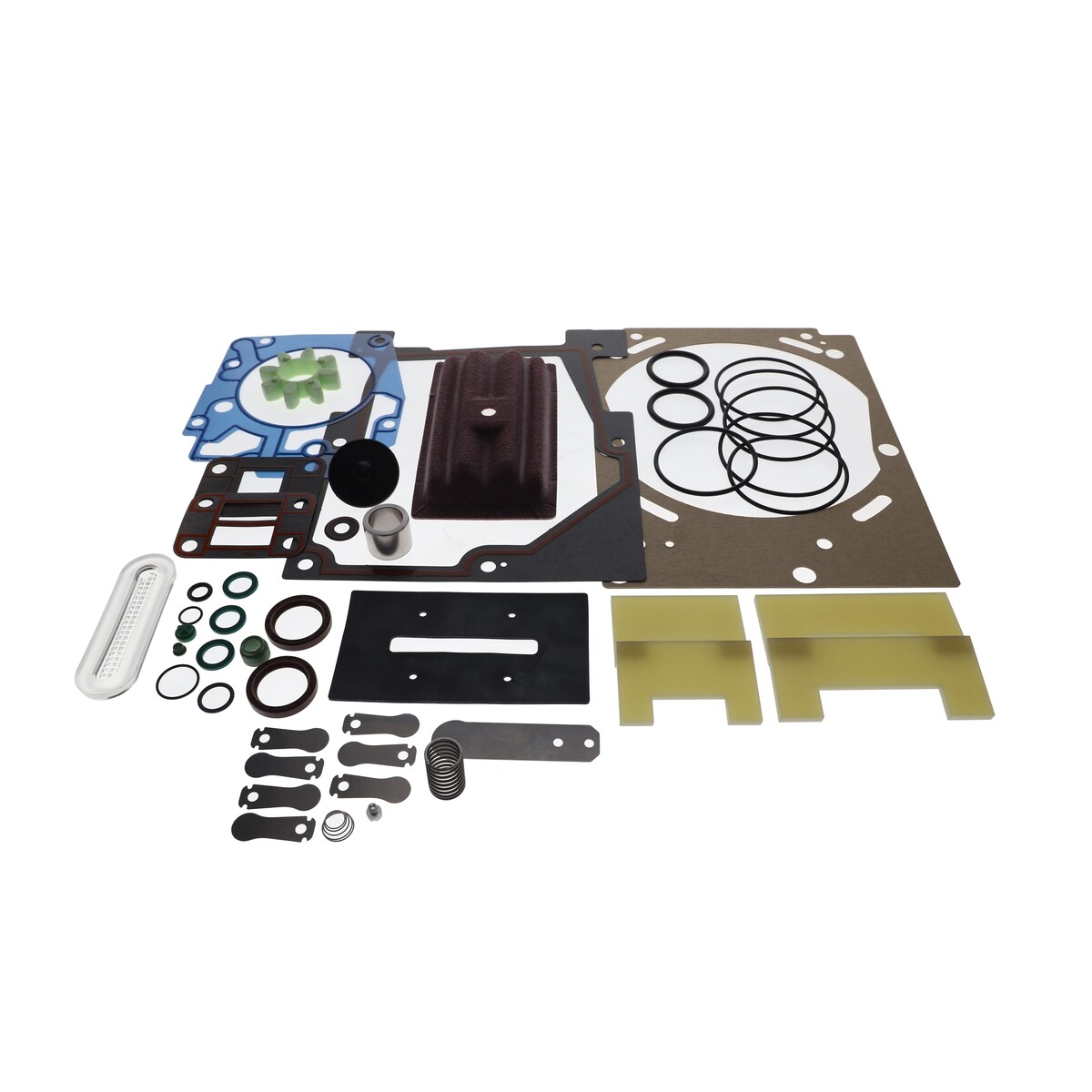

Leybold Trivac D65B Major Repair Kit with GX Vanes, Part# 19122D65KIT
USD 453.00
Used on Leybold Trivac D65B
Major Repair Kit includes; coupling element, O-rings, shaft seal, Vanes, and Valves and other components for a major overhaul
Major Repair Kit includes; coupling element, O-rings, shaft seal, Vanes, and Valves and other components for a major overhaul
Added to Your Shopping Cart
You may also like...
| Part Number | Description | Quantity | Qty in stock |
|---|---|---|---|
| PL22161031 | Split Spring, Leybold, Trivac, D4B, D8B, Part# PL22161031 | 1 | 741 |
| PL20039131 | Sight Glass Gasket, Leybold, Trivac, Part# PL20039131 | 1 | 155 |
| PL20011245 | Exhaust Finger, Part# PL20011245 | 7 | 919 |
| PL20010886 | Leybold Vane 1st Stage - GX, Part# PL20010886 | 2 | 0 |
| PL20010652 | Leybold Vane, 1st & 2nd Stage - GX, Part# PL20010652 | 2 | 713 |
| 20009148 | Leybold Case Gasket, Part# 20009148 | 1 | 64 |
| P23970108 | O-ring, 12 x 1.5 mm - Viton, Part# P23970108 | 1 | 157 |
| P23955165 | Leybold Gasket, Viton, Part# P23955165 | 3 | 38 |
| PL39350018 | Oil Nozzle, Leybold, Trivac, Part# PL39350018 | 1 | 0 |
| PL39350019 | Leybold Silencer Nozzle, Part# PL39350019 | 1 | 75 |
| PL40050140 | Valve Disc, Leybold, Trivac, Part# PL40050140 | 1 | 85 |
| PL40175023 | Pressure Relief Valve, Leybold, Trivac, Part# PL40175023 | 1 | 160 |
| PL70120381 | O-ring, FKM - Part# PL70120381 | 1 | 53 |
| PL20010746 | Beaded Valve Gasket, Leybold, Trivac, D40B, D65B, S40B, S65B, D40BCS, D65BCS, Part# PL20010746 | 1 | 112 |
| PL20009095 | Leybold Coupling Insert, Part# PL20009095 | 1 | 405 |
| PL20010744 | Leybold Trivac D40 / D65 Module Gasket, Mylar, Part# PL20010744 | 1 | 150 |
| PL35001179 | Leybold Sight Glass Part# PL35001179 | 1 | 151 |
| PL39026014 | Leybold Demister Filter, Part# PL39026014 | 1 | 308 |
| PL34861029 | Seal, Leybold, Trivac, Part# PL34861029 | 1 | 107 |
| PL34861028 | Non - Return Valve, Leybold, Trivac, Part# PL34861028 | 1 | 365 |
| PL23973146 | Seal, Float, Leybold, Trivac, Part# PL23973146 | 1 | 205 |
| 23973044 | Gasket, Flat, Leybold, Trivac, Part# 23973044 | 1 | 344 |
| 23973042 | Cover Gasket, Leybold, Trivac, D40B, D65B, D40BCS, D65BCS, S40B, Part# 23973042 | 1 | 213 |
| 23973036 | Coupling Housing Gasket, Leybold, Trivac, Part# 23973036 | 1 | 78 |
| PL23970516 | O-ring, 42 x 5 mm - Viton, Part# PL23970516 | 2 | 248 |
| PL23970305 | O-ring, 10 x 3 mm - Viton, Part# PL23970305 | 1 | 101 |
| PL23970223 | O-ring, FKM - Part# PL23970223 | 4 | 398 |
| PL23970147 | O-ring, 16 x 2.5 mm - Viton, Part# PL23970147 | 1 | 90 |
| PL23970016 | O-ring, 22 x 1.5 mm - Viton, Part# PL23970016 | 1 | 45 |
| PL23953007 | Shaft Seal, Viton - 30 x 40 x 7, Leybold, Trivac, Part# PL23953007 | 2 | 160 |
| PL23950121 | O-ring, 68 x 3.5 mm - Buna, Part# PL23950121 | 1 | 129 |
| PL23192034 | Leybold Shaft Seal, Bushing Sleeve, Part# PL23192034 | 1 | 114 |
| PL22161040 | Stainless Steel Spring, Leybold, Trivac, Part# PL22161040 | 1 | 471 |
General product classifications
| Part Number Cross-Reference | 23L-D65B-FV |
| Compatible Brands | Leybold |
| Family | Trivac |
| Compatible Pump Models | D65B |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | LEYBOLD-67 |
The Leybold Major Repair Kit with GX Vanes (Part# 19122D65KIT) is a comprehensive kit designed for performing a major overhaul on Leybold Trivac Pump Model D65B. It includes essential components such as a coupling element, O-rings, shaft seal, Vanes, Valves, and other necessary parts. This kit provides all the components required to conduct a significant repair or maintenance operation on the D65B pump, ensuring its optimal performance and longevity. By utilizing this kit, users can conveniently replace worn or damaged parts and restore the pump's functionality to its original specifications.
