Leybold Major Repair Kit with GX Vanes Part# PL971427680
Leybold Major Repair Kit with GX Vanes Part# PL971427680

Leybold Major Repair Kit with GX Vanes Part# PL971427680

PL971427680
USD 699.00

Used on Leybold Sogevac SV100B

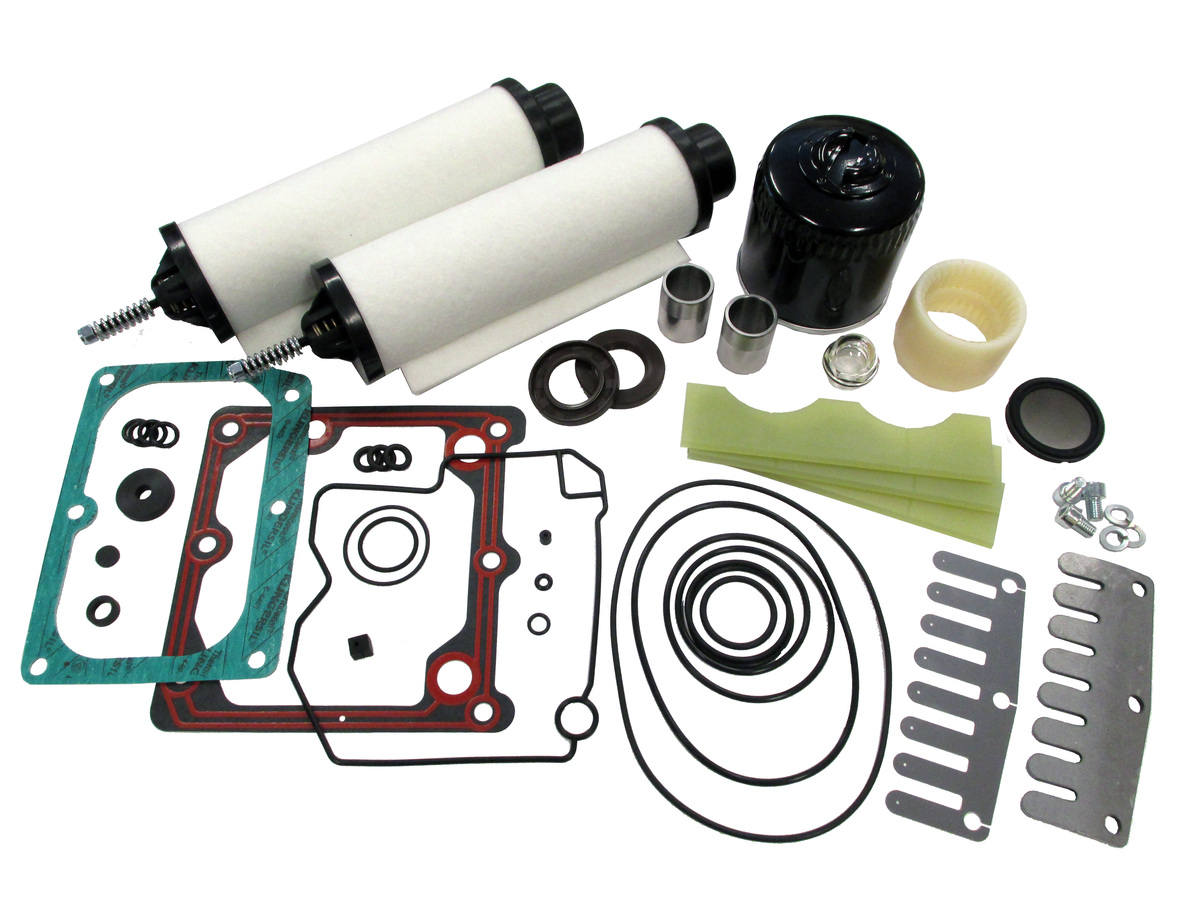

Major Repair Kit with GX Vanes includes; O-rings, shaft seals, Vanes, filters, Valve plates & other components as required for major overhaul.

0 In Stock

Click For Availability
Bill Of Material
Part Number Description Quantity Qty in stock
PL71217410 O-ring, 33 x 3.5 mm - Viton, Part# PL71217410 1 56
PL71213150 Oil Filter, Leybold, Sogevac, SV100B, SV120B, Part# PL71213150 1 2
PL71015460 Valve Intake Viton, Leybold, Sogevac, Part# PL71015460 1 28
320067 O - ring, 63.09 x 3.53 mm - Viton, Part# 320067 1 108
PL23970211 O-ring, 50 x 3 mm - Viton, Part# PL23970211 2 117
PL71418840 Stop Valve, HRS, 5.62"LX 2.12"WX.4"THK, Leybold, Sogevac, Part# PL71418840 1 20
PL71418890 Exhaust Flange Gasket, Paper, Leybold, Sogevac, Part# PL71418890 1 4
PL71417060 Membrane, Disk, 12X12mm- Leybold, Sogevac, Part# PL71417060 1 14
PL71417240 O-ring, 126.59 x 3.53 mm - Viton, Part# PL71417240 1 30
PL71417260 O-ring, 9.12 x 3.53 mm - Viton, Part# PL71417260 3 135
PL71417300 Leybold FILTER,EXHAUST,ASSY,SV65B/SV100B Part# PL71417300 2 73
71418750G Vane - GX, Leybold, Sogevac, Part# 71418750G 3 52
PL71418780 Coupling, Nylon, Bowex M 28, Leybold, Sogevac, Part# PL71418780 1 0
310113 Shaft Seal, Leybold, Sogevac, Part# 310113 2 0
300161 ring Gasket, Leybold, Sogevac, SV100B, SV120B, SV300B, Part# 300161 1 17
640020 Cylindrical Seal, Leybold, Sogevac, SV65B, SV40B, SV40BI, Part# 640020 1 23
320387 O-ring, 160 x 3mm - Viton, Part# 320387 1 6
300189 Formed O-ring Gasket, Part# 300189 1 86
PL971424570 Ring 8.30X29.5X6.34 mm- Leybold, Sogevac, Part# PL971424570 1 1
923031 O-ring, Viton - Part# 923031 1 294
900048 O-ring, 8 x 2 mm - Viton, Part# 900048 1 2461
82007 O-ring, 10.77 x 2.62 mm - Viton, Part# 82007 4 87
79134 O-ring, 8 x 2 mm - Viton, Part# 79134 1 144
420056 Lock Washer, Split, M8, Leybold, Sogevac, Part# 420056 3 106
PL971427720 Sleeve, Rotor ring, SPCL, SV100B, Leybold, Sogevac, Part# PL971427720 2 7
PL71421340 O-ring, 82.14 x 3.53 mm - Viton, Part# PL71421340 1 0
PL71418940 Flat Gasket, Paper, Leybold, Sogevac, SV100B, SV120B, Part# PL71418940 1 0
PL71217582 O-ring, 27 x 2.5mm - Viton, Part# PL71217582 1 0
PL71212428 Oil Sight Glass, Leybold, Sogevac, Part# PL71212428 1 17
PL71212503 Float Valve Seal, Leybold, Sogevac, Part# PL71212503 1 647
Specifications

General product classifications

Part Number Cross-Reference 971427680
23L-SV100B-V
Compatible Brands Leybold
Family Sogevac
Compatible Pump Models SV100B
Category Repair Kits
Subcategory Repair Kit
Country of origin US
Manual page LEYBOLD-72
Product Details

The Leybold Major Repair Kit with GX Vanes (Part# PL971427680) is a comprehensive kit designed for conducting a major repair or overhaul on Leybold SOGEVAC Pump Model SV100B. This kit includes essential components such as O-rings, shaft seals, vanes, filters, valve plates, and other necessary parts required for a major overhaul. By utilizing this kit, users can conveniently replace worn or damaged components, ensuring the pump's efficient and reliable performance. The Leybold Major Repair Kit with GX Vanes (Part# PL971427680) provides a convenient solution for comprehensive maintenance and repair of the Leybold SV100B pump model, allowing for the restoration of its functionality and prolonging its service life.
