Leybold Major Repair Kit with GX Vanes Part# 19132D40KIT
Leybold Major Repair Kit with GX Vanes Part# 19132D40KIT

Leybold Major Repair Kit with GX Vanes Part# 19132D40KIT

19132D40KIT
USD 466.00

Used on Leybold Trivac D40BCS

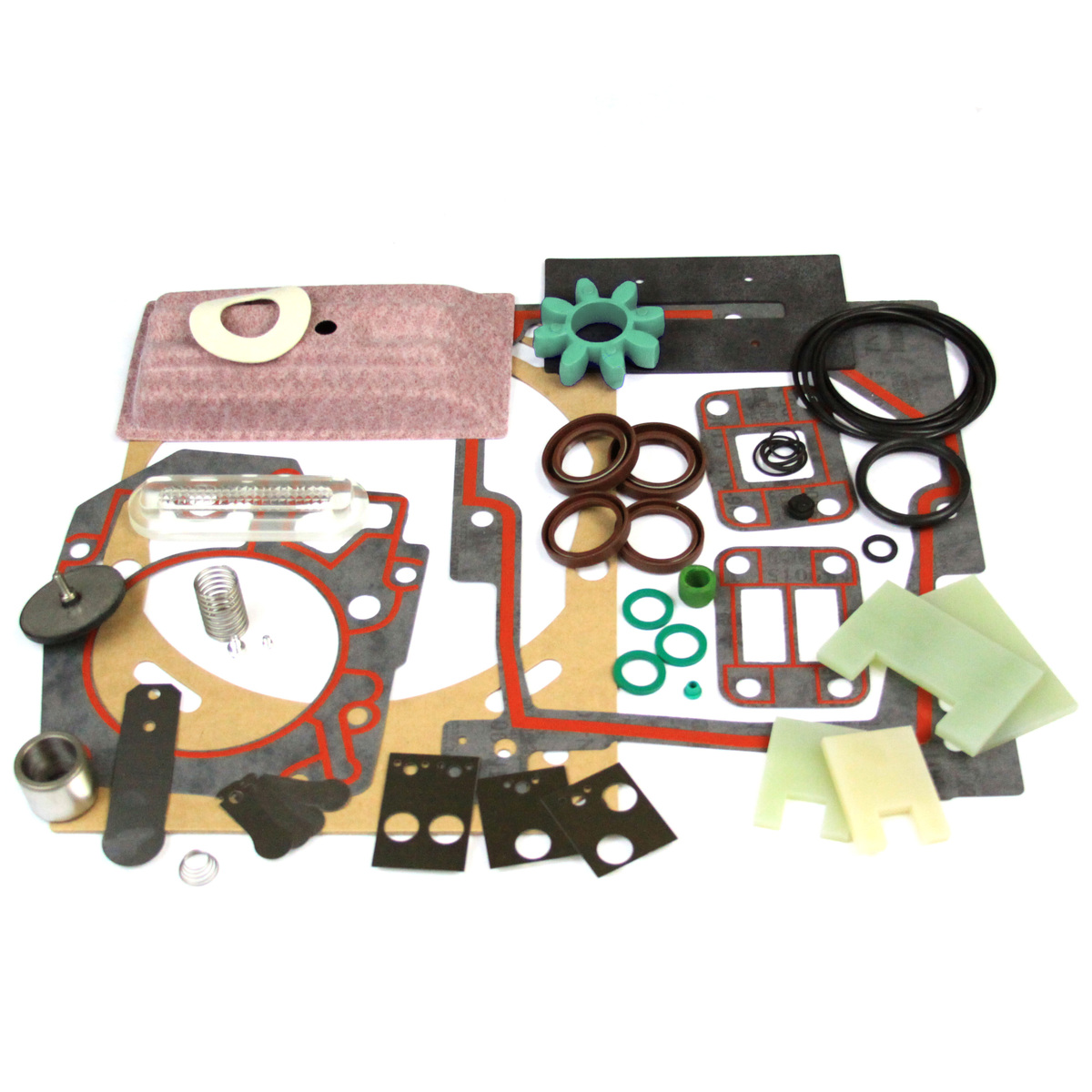

Major Repair Kit includes; coupling element, O-rings, shaft seal, Vanes, and Valves and other components for a major overhaul

0 In Stock

Click For Availability
Typical lead time 1 week(s)
Bill Of Material
Part Number Description Quantity Qty in stock
PL20010744 Leybold Module Gasket, Mylar, Part# PL20010744 1 80
20009137 Deflector Plate Valve, Set of 3-Leybold Trivac, Part# 20009137 1 15
PL20009095 Leybold Coupling Insert, Part# PL20009095 1 131
PL70120381 O-ring, FKM - Part# PL70120381 1 222
PL40175023 Pressure Relief Valve, Leybold, Trivac, Part# PL40175023 1 374
PL40050140 Valve Disc, Leybold, Trivac, Part# PL40050140 1 47
PL39350007 Oil Nozzle, Leybold, Trivac, Part# PL39350007 1 25
PL39350019 Leybold Silencer Nozzle, Part# PL39350019 1 137
PL39026014 Leybold Demister Filter, Part# PL39026014 1 0
PL35001179 Leybold Sight Glass Part# PL35001179 1 339
PL34861029 Seal, Leybold, Trivac, Part# PL34861029 1 179
PL34861028 Non - Return Valve, Leybold, Trivac, Part# PL34861028 1 132
PL23973146 Seal, Float, Leybold, Trivac, Part# PL23973146 1 388
23973044 Gasket, Flat, Leybold, Trivac, Part# 23973044 1 671
P23955165 Leybold Gasket, Viton, Part# P23955165 3 358
P23970108 O-ring, 12 x 1.5 mm - Viton, Part# P23970108 1 158
20009148 Leybold Case Gasket, Part# 20009148 1 61
PL20010652 Leybold Vane, 1st & 2nd Stage - GX, Part# PL20010652 2 607
PL20010653 Vane, 2nd Stage - GX, Leybold, Trivac, D40B, D40BCS, Part# PL20010653 2 33
PL20010746 Beaded Valve Gasket, Leybold, Trivac, D40B, D65B, S40B, S65B, D40BCS, D65BCS, Part# PL20010746 1 41
PL20011245 Exhaust Finger, Part# PL20011245 4 946
PL20039108 Felt Gasket, Leybold Trivac D40BCS / D65BCS - Part# PL20039108 1 93
PL22161031 Split Spring, Leybold, Trivac, D4B, D8B, Part# PL22161031 1 1499
PL23192034 Leybold Shaft Seal, Bushing Sleeve, Part# PL23192034 1 174
PL23950121 O-ring, 68 x 3.5 mm - Buna, Part# PL23950121 1 52
PL23970008 O-ring, 15 x 2 mm - Viton, Part# PL23970008 1 41
PL22161040 Stainless Steel Spring, Leybold, Trivac, Part# PL22161040 1 552
PL23970016 O-ring, 22 x 1.5 mm - Viton, Part# PL23970016 1 66
PL23970147 O-ring, 16 x 2.5 mm - Viton, Part# PL23970147 1 242
PL23970223 O-ring, FKM - Part# PL23970223 4 790
PL23970305 O-ring, 10 x 3 mm - Viton, Part# PL23970305 1 28
PL23970516 O-ring, 42 x 5 mm - Viton, Part# PL23970516 2 279
23973042 Cover Gasket, Leybold, Trivac, D40B, D65B, D40BCS, D65BCS, S40B, Part# 23973042 1 536
23973036 Coupling Housing Gasket, Leybold, Trivac, Part# 23973036 1 79
PL20039131 Sight Glass Gasket, Leybold, Trivac, Part# PL20039131 1 73
PL20039118 Shaft Seal, Viton - 30 x 45 x 8 mm, Leybold, Trivac, Part# PL20039118 2 48
PL23953007 Shaft Seal, Viton - 30 x 40 x 7, Leybold, Trivac, Part# PL23953007 2 285
Specifications

General product classifications

Part Number Cross-Reference 19132
23L-D40BCS-VG
Compatible Brands Leybold
Family Trivac
Compatible Pump Models D40BCS
Category Repair Kits
Subcategory Major Kit
Country of origin US
Manual page LEYBOLD-67
Product Details

The Leybold Major Repair Kit with GX Vanes (Part# 19132D40KIT) is a comprehensive kit designed for conducting a major repair or overhaul on Leybold Trivac Pump Model D40BCS. This kit includes essential components such as a coupling element, O-rings, shaft seal, vanes, valves, and other necessary parts required for a major overhaul. By utilizing this kit, users can conveniently replace worn or damaged components, ensuring the pump's efficient and reliable performance. The Leybold Major Repair Kit with GX Vanes (Part# 19132D40KIT) provides a convenient solution for comprehensive maintenance and repair of the Leybold D40BCS pump model, allowing for the restoration of its functionality and prolonging its service life.
