Leybold Major Repair Kit with GX Vanes Part# 19131D25KIT
USD 384.00
Used on Leybold Trivac D25BCS

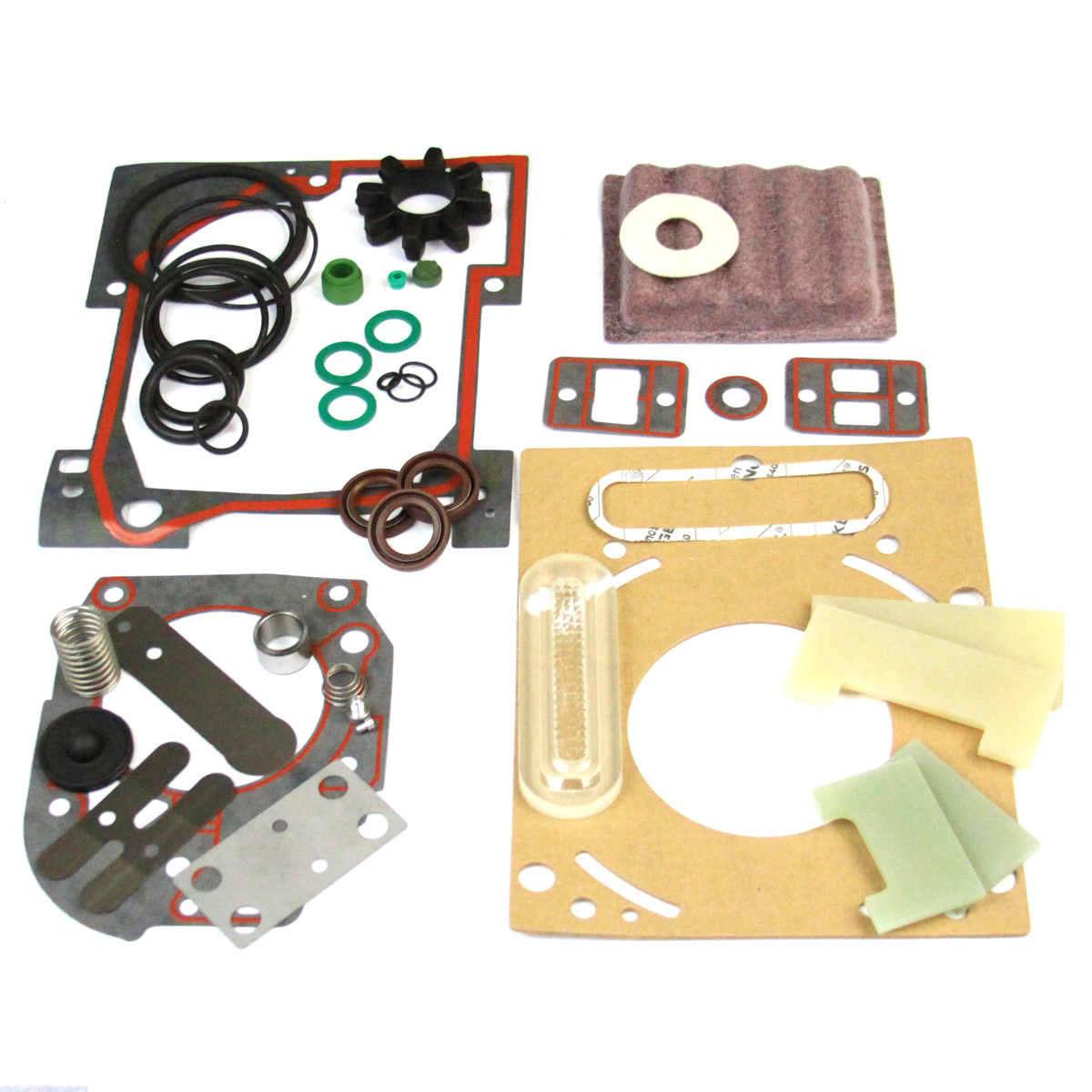

Major Repair Kit includes; coupling element, O-rings, shaft seal, Vanes, and Valves and other components for a major overhaul
Major Repair Kit includes; coupling element, O-rings, shaft seal, Vanes, and Valves and other components for a major overhaul
Added to Your Shopping Cart
| Part Number | Description | Quantity | Qty in stock |
|---|---|---|---|
| PL23970509 | O - ring, 70 x 5 mm - Viton, Part# PL23970509 | 1 | 98 |
| 23973043 | Leybold Gasket, Part# 23973043 | 1 | 36 |
| PL23970506 | O-ring, 27.94 x 5.33 mm - Viton, Part# PL23970506 | 2 | 337 |
| PL23970412 | O-Ring,Viton,6 X 2 MM Part# PL23970412 | 1 | 131 |
| 23970409 | O-ring, 60 x 2 mm - Viton, Part# 23970409 | 1 | 70 |
| PL23970304 | O-ring, 45 x 3 mm - Viton, Part# PL23970304 | 2 | 178 |
| PL23970261 | O-ring, 52 x 3 mm - Viton, Part# PL23970261 | 2 | 72 |
| PL23970147 | O-ring, 16 x 2.5 mm - Viton, Part# PL23970147 | 1 | 184 |
| PL23970006 | O-ring, 55 x 2 mm - Viton, Part# PL23970006 | 1 | 168 |
| PL23953004 | Leybold Shaft Seal, FKM, Part# PL23953004 | 1 | 265 |
| PL23192026 | Leybold Shaft Sleeve Bushing, Part# PL23192026 | 1 | 85 |
| PL40175023 | Pressure Relief Valve, Leybold, Trivac, Part# PL40175023 | 1 | 259 |
| PL40175019 | Valve Plate, Leybold, Trivac, Part# PL40175019 | 1 | 87 |
| PL40159004 | Valve Disc, Leybold, Trivac, Part# PL40159004 | 1 | 65 |
| PL39350015 | Silencing Nozzle, Leybold, Trivac, S8B, D16B, D25B, S16B, S25B, S40B, S65B, D16BCS, D25BCS, Part# PL39350015 | 1 | 302 |
| PL39350008 | Oil Nozzle-Leybold Trivac, Part# PL39350008 | 1 | 53 |
| PL39026013 | Leybold Demister Filter, Part# PL39026013 | 1 | 132 |
| PL20009235 | Shaft Seal, Leybold, Trivac, D16BCS, D25BCS, Part# PL20009235 | 2 | 44 |
| P23970108 | O-ring, 12 x 1.5 mm - Viton, Part# P23970108 | 2 | 130 |
| PL20009094 | Coupling Insert, Leybold, Trivac, Part# PL20009094 | 1 | 360 |
| PL20010655 | Leybold Vane - GX, Part# PL20010655 | 2 | 0 |
| PL20010738 | Coupling Housing Gasket, Leybold Trivac D16B/BCS D25B/BCS, Part# PL20010738 | 1 | 273 |
| PL20010885 | Leybold Vane 1st Stage - GX, Part# PL20010885 | 2 | 0 |
| PL20039148 | Felt Gasket, Leybold Trivac D16/D25 BCS - Part# PL20039148 | 1 | 39 |
| PL22161031 | Split Spring, Leybold, Trivac, D4B, D8B, Part# PL22161031 | 1 | 1252 |
| PL22161040 | Stainless Steel Spring, Leybold, Trivac, Part# PL22161040 | 1 | 286 |
| 23973052 | Oil Gasket, Leybold, Trivac, D16BCS, D25BCS, Part# 23973052 | 1 | 37 |
| 23973057 | Sight Glass Gasket, Leybold, Trivac, Part# 23973057 | 1 | 25 |
| PL23973146 | Seal, Float, Leybold, Trivac, Part# PL23973146 | 1 | 430 |
| PL34861028 | Non - Return Valve, Leybold, Trivac, Part# PL34861028 | 1 | 394 |
| PL34861029 | Seal, Leybold, Trivac, Part# PL34861029 | 1 | 117 |
| PL35001179 | Leybold Sight Glass Part# PL35001179 | 1 | 300 |
| P23955165 | Leybold Gasket, Viton, Part# P23955165 | 3 | 328 |
| 20009012 | Leybold Gasket, Part# 20009012 | 1 | 307 |
| 23973044 | Gasket, Flat, Leybold, Trivac, Part# 23973044 | 1 | 374 |
| PL20010736 | Module Gasket, Mylar - Leybold Trivac D16/D25, Part# PL20010736 | 1 | 76 |
| 20009016 | Plate Valve, Deflector, Leybold, Trivac, Part# 20009016 | 1 | 16 |
General product classifications
| Part Number Cross-Reference | 19131BCS25 |
| Compatible Brands | Leybold |
| Family | Trivac |
| Compatible Pump Models | D25BCS |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
| Manual page | LEYBOLD-67 |
The Leybold Major Repair Kit with GX Vanes Part# 19131D25KIT is a comprehensive kit designed for a major overhaul of Leybold TRIVAC pump models D25BCS. This kit includes essential components such as a coupling element, O-rings, shaft seal, GX Vanes, Valves, and other necessary components needed for a thorough maintenance and restoration of the pump's performance. By utilizing the Major Repair Kit, users can effectively replace critical parts that experience wear or damage over time, ensuring the optimal functioning of their D25BCS pump model. The GX Vanes, known for their durability and efficiency, are included to enhance the pump's performance during operation.
