Leybold Major Repair Kit with GX Vanes Part# 10170KIT

Leybold Major Repair Kit with GX Vanes Part# 10170KIT

10170KIT
USD 341.00

Used on Leybold Trivac D30A

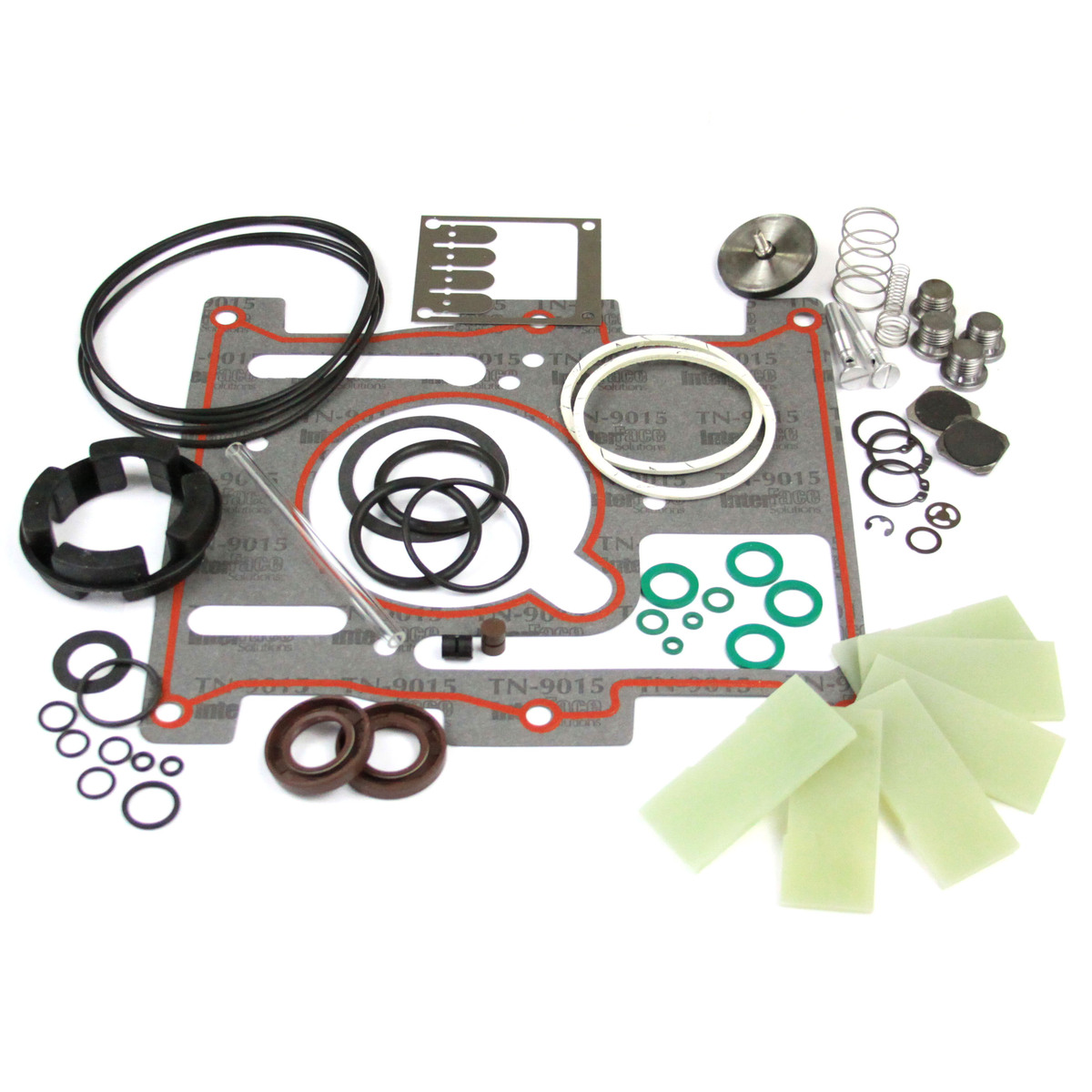

Major Repair Kit with GX Vanes include; coupling element, O-rings, gaskets, shaft seals, Vanes, and other components for major overhaul.

5 In Stock

Click For Availability
Bill Of Material
Part Number Description Quantity Qty in stock
23970411 O-ring, 122 x 3 mm - Viton, Part# 23970411 4 71
PL23970516 O-ring, 42 x 5 mm - Viton, Part# PL23970516 2 130
40164117 Plate Valve Assembly, Gas Ballast,  Leybold , Trivac, Part# 40164117 1 44
P23955165 Leybold Gasket, Viton, Part# P23955165 4 254
23925225 Gas Ballast Gasket, Flat, Leybold, Trivac, Part# 23925225 1 90
23811142 Case Seal Gasket, Leybold, Trivac, Part# 23811142 1 125
PL23970147 O-ring, 16 x 2.5 mm - Viton, Part# PL23970147 1 0
23970148 O-ring, 5 x 2 mm - Viton, Part# 23970148 2 169
PL23970304 O-ring, 45 x 3 mm - Viton, Part# PL23970304 1 118
23955171 Sight Glass Gasket-Leybold Trivac, Part# 23955171 1 29
23820158 Intake, Exhaust Gasket, Leybold, Trivac, S30A, S60A, S90A, Part# 23820158 2 61
PL20127105 Plug Screw, Leybold, Part# PL20127105 4 111
PL23970436 O-ring, 27 x 2.5 mm - Viton, Part# PL23970436 1 66
72211004 Tube Sight Glass, Leybold, Trivac, S30A, S60A, S90A, D30A, D60A, D90A, Part# 72211004 1 82
72000129 Mounting Bolt, Leybold, Trivac, Part# 72000129 2 222
22162140 Spring, Leybold, Trivac, Part# 22162140 1 170
22162141 Spring - Leybold, Trivac, Part# 22162141 1 224
22162142 Spring, Leybold, Trivac, Part# 22162142 1 52
23105108 Snap ring, Leybold, Trivac, Part# 23105108 1 43
23103111 Retaining ring, Leybold, Trivac, Part# 23103111 3 89
23973131V Anti-Suckback Nib, Viton- Leybold, Trivac, Part# 23973131V 1 419
70100196 Coupling Element, Leybold, Trivac, S30A, S60A, S90A, D30A, D60A, D90A, D30AC, D60AC, D90AC, Part# 70100196 1 116
72590000 Gasket, Viton-Leybold Trivac, Part# 72590000 2 431
72590001 Flat Gasket, Leybold, Trivac, Part# 72590001 2 492
72591000 O-ring, 9.25 x 1.78 mm - Viton, Part# 72591000 2 47
72591001 O-ring, 10.82 x 1.78 mm - Viton, Part# 72591001 2 268
PL20010846 Leybold, 1st & 2nd Stage Vane - GX, Part# PL20010846 6 112
PL23953110 Shaft Seal, Viton - 22 x 40 x 7, Leybold, Trivac, Part# PL23953110 2 174
PL23973131 Anti-Suckback Nib, Buna, Leybold, Trivac, Part# PL23973131 1 79
PL40050137 Anti-Suckback Valve Disc, Leybold, Trivac, Part# PL40050137 1 81
PL40050138 Valve - Leybold, Trivac, Part# PL40050138 2 77
PL40164114 Plate Valve, Leybold, Trivac, S30A, D30A, D60A, Part# PL40164114 1 41
Specifications

General product classifications

Part Number Cross-Reference 19106B2
Compatible Brands Leybold
Family Trivac
Compatible Pump Models D30A
Category Repair Kits
Subcategory Major Kit
Country of origin US
Manual page LEYBOLD-65
Product Details

The Leybold Major Repair Kit with GX Vanes (Part# 10170KIT) is a comprehensive kit designed for conducting a major repair or overhaul on Leybold TRIVAC Pump Model D30A. This kit includes essential components such as a coupling element, O-rings, gaskets, shaft seals, vanes, and other necessary parts required for a major overhaul. By utilizing this kit, users can conveniently replace worn or damaged components, ensuring the pump's efficient and reliable performance. The Leybold Major Repair Kit with GX Vanes (Part# 10170KIT) provides a convenient solution for comprehensive maintenance and repair of the Leybold D30A pump model, allowing for the restoration of its functionality and prolonging its service life.
