Leybold Major Repair Kit with GX Vanes Part# 10169KIT
Leybold Major Repair Kit with GX Vanes Part# 10169KIT

Leybold Major Repair Kit with GX Vanes Part# 10169KIT

10169KIT
USD 307.00

Used on Leybold Trivac D16A

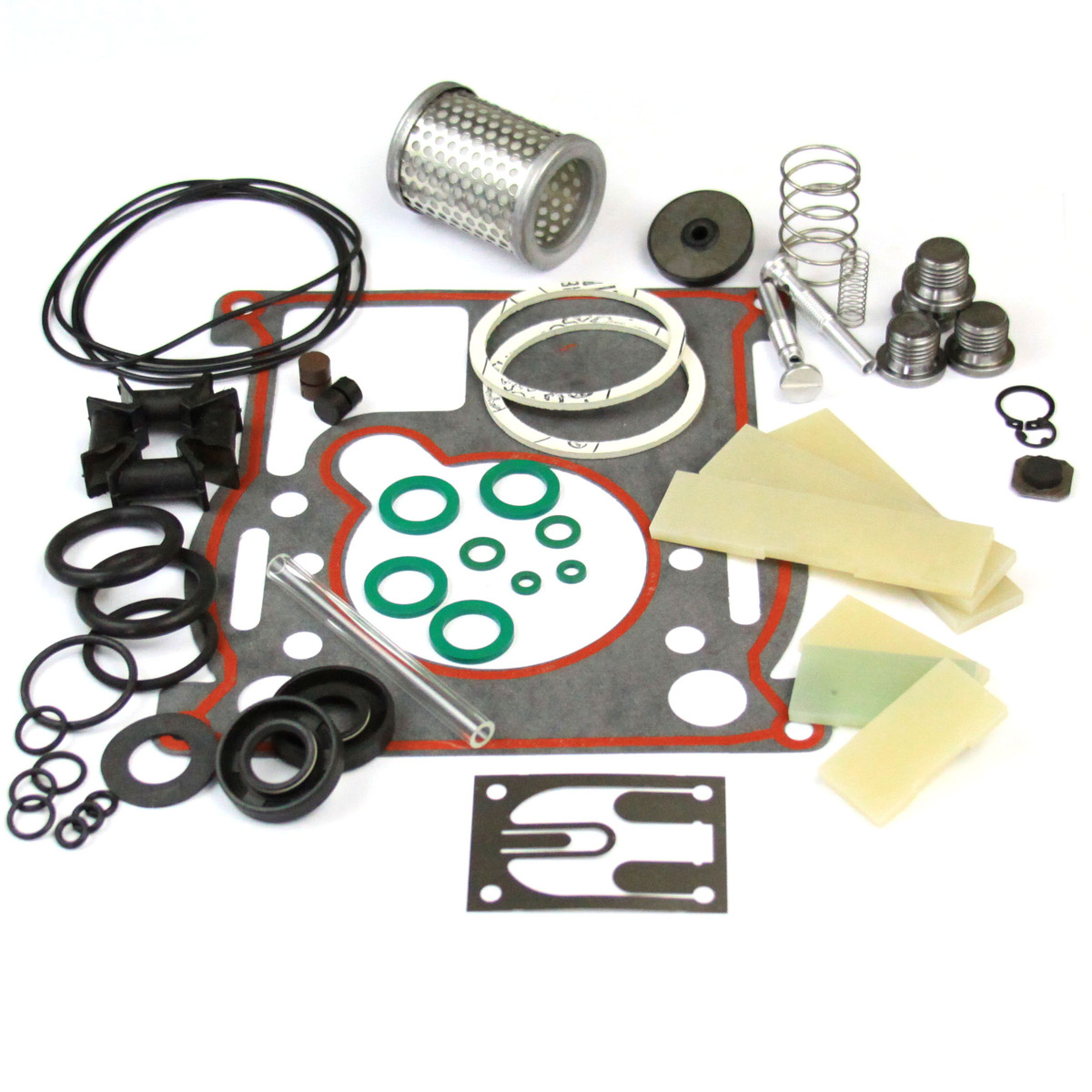

Major Repair Kit includes coupling element, O-rings, gaskets, shaft seals, Vanes & other components for a major overhaul.

11 In Stock

Click For Availability
Bill Of Material
Part Number Description Quantity Qty in stock
23970148 O-ring, 5 x 2 mm - Viton, Part# 23970148 3 189
PL23925226 Gas Ballast Gasket, Leybold, Trivac, Part# PL23925226 1 8
40164116 Leybold Plate Valve , Part# 40164116 1 77
PL40050135 Valve, Leybold, Trivac, D2.5E, D5E, Part# PL40050135 1 107
39026117 Oil Filter, Leybold, Trivac, Part# 39026117 1 37
70100147 Coupling Element, Leybold, Trivac, S4A, S8A, Part# 70100147 1 37
P23955165 Leybold Gasket, Viton, Part# P23955165 4 370
PL23970506 O-ring, 27.94 x 5.33 mm - Viton, Part# PL23970506 2 350
PL23970117 O-ring, 29 x 3 mm - Viton, Part# PL23970117 1 58
23955171 Sight Glass Gasket-Leybold Trivac, Part# 23955171 1 45
23953142 Shaft Seal, 15 x 232 x 7, Leybold, Trivac, D8A, D16A, Part# 23953142 2 101
23820156 Intake/Exhaust Gasket, Leybold, Trivac, Part# 23820156 2 77
23811126 Case Seal Gasket, Leybold Trivac D8A/AC D16A/AC, Part# 23811126 1 102
PL20127105 Plug Screw, Leybold, Part# PL20127105 4 144
23973131V Anti-Suckback Nib, Viton- Leybold, Trivac, Part# 23973131V 1 437
72590000 Gasket, Viton-Leybold Trivac, Part# 72590000 2 451
72590001 Flat Gasket, Leybold, Trivac, Part# 72590001 2 525
72591000 O-ring, 9.25 x 1.78 mm - Viton, Part# 72591000 2 79
72591001 O-ring, 10.82 x 1.78 mm - Viton, Part# 72591001 2 450
23103104 Retaining ring, Leybold, Trivac, Part# 23103104 1 25
23105108 Snap ring, Leybold, Trivac, Part# 23105108 1 59
22162143 Spring, Leybold, Trivac, Part# 22162143 1 158
22162141 Spring - Leybold, Trivac, Part# 22162141 1 253
72211003 Tube Sight Glass-Leybold Trivac, Part# 72211003 1 25
72000129 Mounting Bolt, Leybold, Trivac, Part# 72000129 2 254
PL23970436 O-ring, 27 x 2.5 mm - Viton, Part# PL23970436 1 143
40050139 Anti - Suckback Valve, Disc, Leybold, Trivac, Part# 40050139 1 25
PL20010881 Vane, 1st Stage - GX, Leybold, Trivac, Part# PL20010881 3 35
PL20010882 Vanes, 1st & 2nd Stage, Leybold, Trivac, Part# PL20010882 3 60
PL23970156 O-ring, 86 x 2 mm - Viton, Part# PL23970156 4 37
PL23973131 Anti-Suckback Nib, Buna, Leybold, Trivac, Part# PL23973131 1 99
Specifications

General product classifications

Part Number Cross-Reference 19104B2
19104B2BU
Compatible Brands Leybold
Family Trivac
Compatible Pump Models D16A
Category Repair Kits
Subcategory Major Kit
Country of origin US
Manual page LEYBOLD-64
Product Details

The Leybold Major Repair Kit with GX Vanes (Part# 10169KIT) is a comprehensive kit designed for conducting a major repair or overhaul on Leybold TRIVAC Pump Model D16A. This kit includes essential components such as a coupling element, O-rings, gaskets, shaft seals, vanes, and other necessary parts required to restore the pump to optimal working condition. By utilizing this kit, users can conveniently replace worn or damaged components, ensuring the pump's efficient and reliable performance. The Leybold Major Repair Kit with GX Vanes (Part# 10169KIT) provides a convenient solution for comprehensive maintenance and repair of the Leybold D16A pump model, allowing for the restoration of its functionality and prolonging its service life.
