Minor Repair Kit, Fisher Scientific M4C, M6C, M8C (3rd Gen.)
USD 347.00
Used on Fisher Scientific Maxima M4C, M6C, M8C
3rd generation Fisher Maxima pumps can be identified by the detachable plastic electrical box on top of the motor, oil drain valve on the side of the oil box & a single-piece rotor inside the pump mechanism.

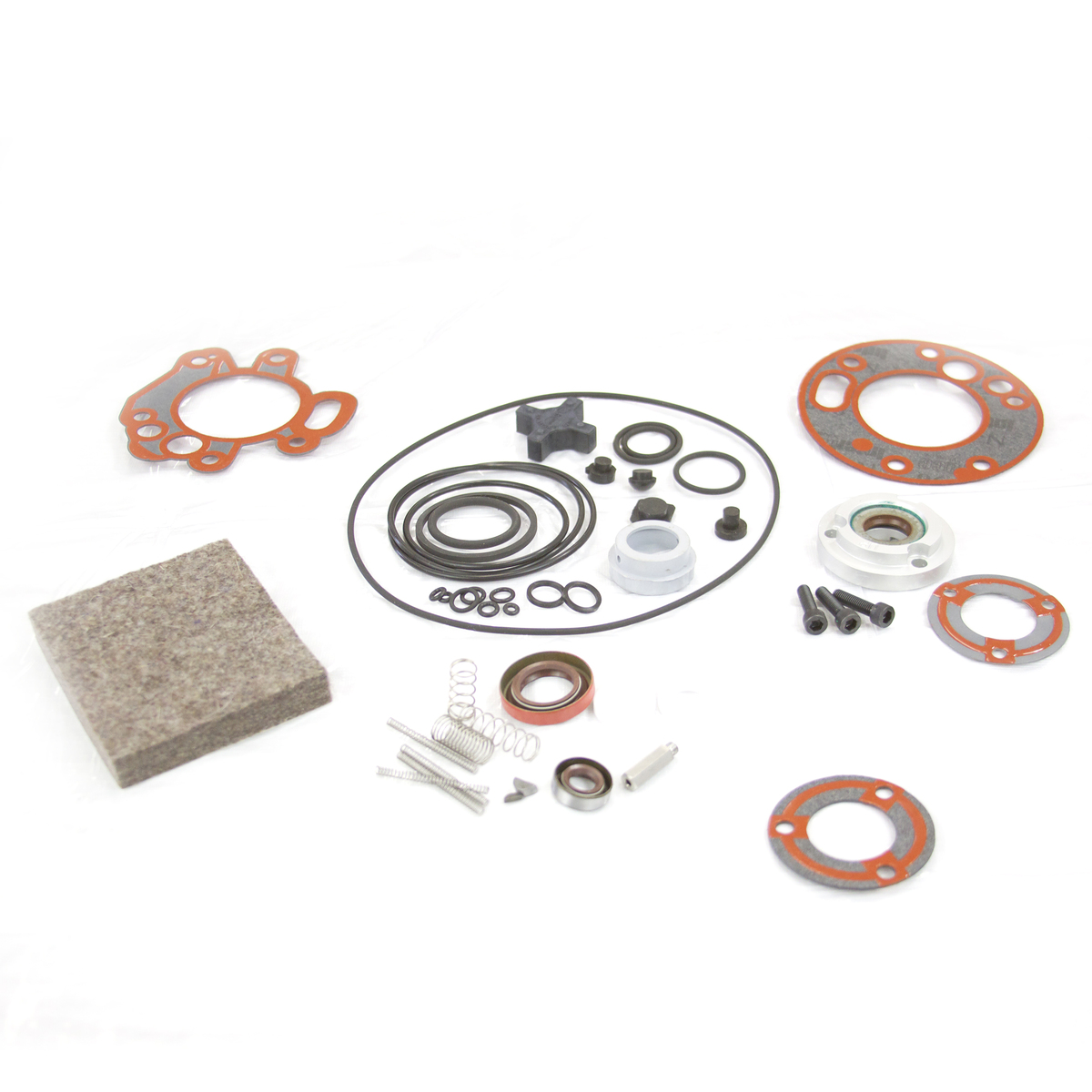

Kit contents may vary from product image, for exact kit contents see bill of materials below
3rd generation Fisher Maxima pumps can be identified by the detachable plastic electrical box on top of the motor, oil drain valve on the side of the oil box & a single-piece rotor inside the pump mechanism.
Kit contents may vary from product image, for exact kit contents see bill of materials below
Added to Your Shopping Cart
| Part Number | Description | Quantity | Qty in stock |
|---|---|---|---|
| 412963 | O-ring, 2.57 x 1.78 mm - Viton, Part# 412963 | 2 | 40 |
| 660197 | O-ring, 6.07 x 1.78 mm - Viton, Part# 660197 | 2 | 93 |
| 660199 | Case Gasket, Fisher Scientific, Maxima, DirecTorr, Part# 660199 | 1 | 162 |
| 412962 | Shaft Seal, 3/8", Welch, Maxima, DirecTorr, Part# 412962 | 1 | 9 |
| 412732 | Woodruff Key, Steel, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 412732 | 1 | 72 |
| 410643 | Shaft Seal Gasket, Fisher Scientific, Part# 410643 | 1 | 184 |
| 660200 | O-ring, 28.17 x 3.53 mm - Viton, Part# 660200 | 1 | 27 |
| 660204 | O-ring, 58.42 x 2.62 mm - Viton, Part# 660204 | 1 | 25 |
| 660207 | O-ring, 71.12 x 2.62 mm - Viton, Part# 660207 | 1 | 6 |
| 660212 | O-ring, 23.47 x 2.62 mm - Viton, Part# 660212 | 2 | 162 |
| 660225 | O-ring, 1 5/8" x 7/64"- Viton, Part# 660225. | 1 | 13 |
| 619282A | O-ring, 7.65 x 1.78 mm - Viton, Part# 619282A | 1 | 31 |
| 616385 | Module Gasket, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 616385 | 1 | 10 |
| 612157A | O-ring, 3.68 x 1.78 mm - Viton, Part# 612157A | 1 | 99 |
| 612130A | O-ring, 17.12 x 2.62 mm - Viton, Part# 612130A | 1 | 24 |
| 612118A | Gas Ballast Valve, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 612118A | 1 | 11 |
| 413390 | Shaft Seal, 3/4", Welch, Maxima, DirecTorr, M8C, M12C, Part# 413390 | 1 | 22 |
| 412996 | Vane Spring, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 412996 | 4 | 16 |
| 413005 | O-ring, 4.47 x 1.78 mm - Viton, Part# 413005 | 1 | 46 |
| 413175 | Washer Gasket, Nylon, Fisher Scientific, Welch, Part# 413175 | 1 | 20 |
| 616059 | Exhaust Valve Spring, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 616059 | 1 | 18 |
| 616084 | Drip Pad, Felt, Fisher Scientific, Maxima, DirecTorr, Welch, Part# 616084 | 1 | 21 |
| 616215 | Shaft Seal Assembly - 17 mm, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 616215 | 1 | 10 |
| 619426 | Compression Spring, Plunger, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 619426 | 1 | 66 |
| 619526 | O-ring, 75.87 x 2.62 mm - Viton, Part# 619526 | 1 | 19 |
| 620014 | Woodruff Key, Steel, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 620014 | 1 | 27 |
| 620118 | O-ring, Shaped, 11 mm ID X 14 mm OD - Viton, Part# 620118 | 2 | 30 |
| 620274 | Hose Barb Orifice, 0.014", Fisher Scientific, Welch, Maxima, DirecTorr, Part# 620274 | 1 | 9 |
| 660117 | Purge Valve Stopper, Welch, Maxima, Part# 660117 | 1 | 16 |
| 660194 | O-ring, 158.42 x 2.62 mm - Viton, Part# 660194 | 1 | 8 |
| 616058 | Exhaust Valve, Poppet, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 616058 | 1 | 10 |
| 616057 | Poppet Valve, Interstage, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 616057 | 1 | 15 |
| 616038 | Spider Coupling, Buna, Fisher Scientific, Welch, Maxima DirecTorr, Part# 616038 | 1 | 11 |
| 616030 | Gas Ballast Knob, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 616030 | 1 | 13 |
| 616002 | Drain Valve Seat, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 616002 | 2 | 8 |
| 612204A | Gas Ballast Spring, Fisher Scientific, Welch, Maxima, DirecTorr, Part# 612204A | 1 | 104 |
General product classifications
| Part Number Cross-Reference | 23F-M4C |
| Compatible Brands | Fisher Scientific |
| Family | Maxima |
| Compatible Pump Models |
M4C
M6C M8C |
| Category | Repair Kits |
| Subcategory | Minor Kit |
| Country of origin | US |
| Manual page | FISHERSCI-56 |
Minor Repair Kits includes; O-rings, gaskets, shaft seals, keys, Valves, drip pads, coupling, springs, washers & other components for minor overhaul. Used on Pump Models M4C, M6C, M8C
