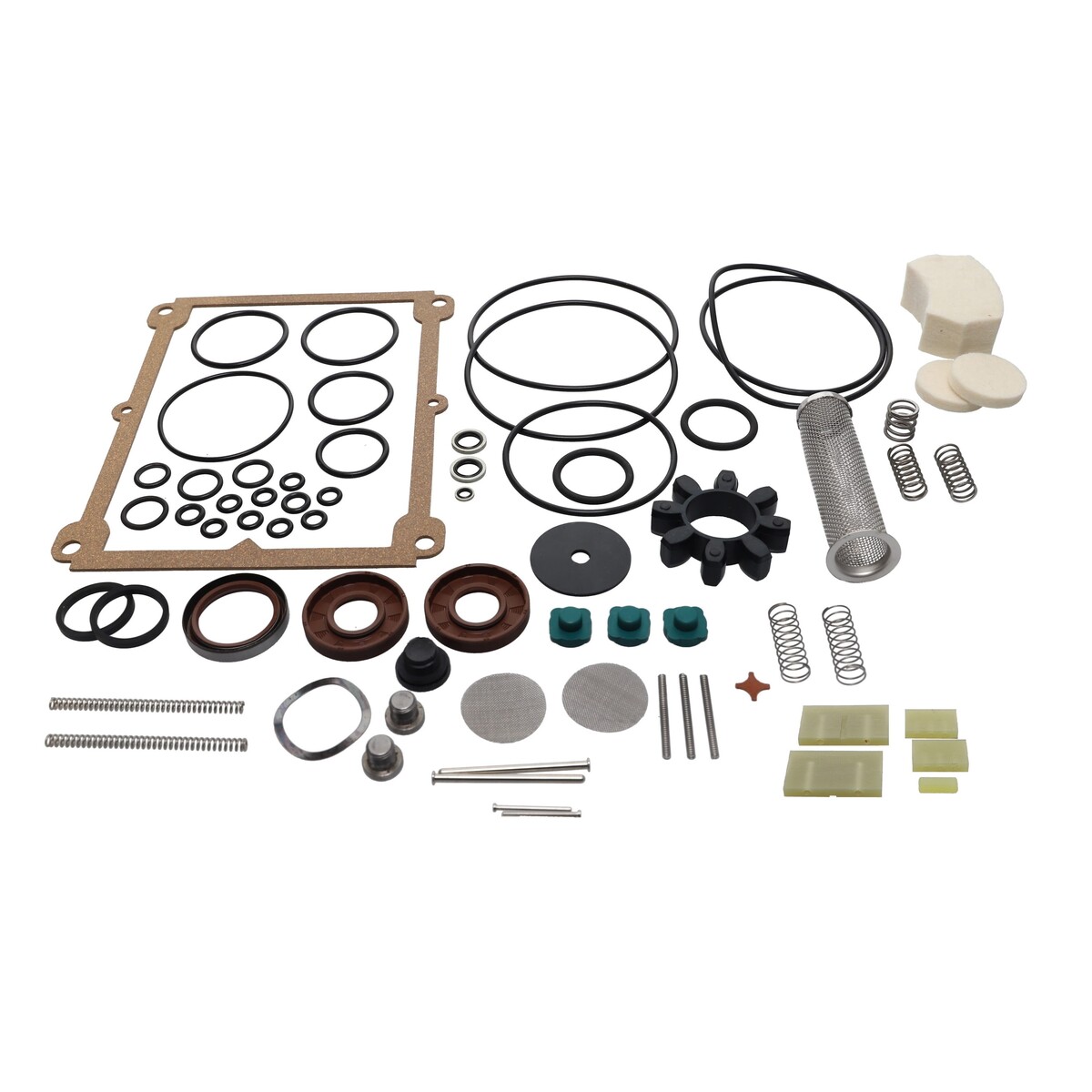

Major Repair Kit, Edwards E1/E2M 18 Part# 36301800ED

Major Repair Kit, Edwards E1/E2M 18 Part# 36301800ED

36301800ED
USD 372.00
Used on Edwards E2M18 oil sealed rotary vane vacuum pump

For complete kit content details see bill of materials below

0 In Stock

Click For Availability
Typical lead time 1 week(s)
Related maintenance products
Plus UG19 Oil - 1 L (1.06 qt), Part# PPUG19001
PPUG19001
Plus UG19 Oil - 1 L (1.06 qt), Part# PPUG19001
USD 28.00
VP FF Vacuum Pump Flushing Fluid, 5 Liter
FF-005
VP FF Vacuum Pump Flushing Fluid, 5 Liter
USD 62.30
Bill Of Material
Part Number Description Quantity Qty in stock
02120028 O-ring, 6.6 x 2.4 mm - Buna, Part# 2120028 8 1579
02109067 Shaft Seal, Edwards, E1/E2M, Part# 2109067 2 52
02109064 Edwards Shaft Seal, Viton, Part# 02109064 1 238
27102033 Valve Spring, E1/E2M, Part# 27102033 2 927
02122037 O-ring, 15.3 x 2.4 mm - Viton, Part# 02122037 1 307
27159635 Oil Box Gasket, Edwards, E1/E2M, Part# 27159635 1 244
27159430 Distributor, Rubber, Edwards, E1/E2M, E1M18, E2M18, Part# 27159430 1 178
02104012 Dowty Seal-Edwards E1/E2M, Part# 02104012 1 711
02104001 Dowty Seal, Edwards, E1/E2M, Part# 2104001 2 233
00714012 Plug Oil Drain Steel, Edwards, E1/E2M, Part# 714012 2 144
02125026 O-ring, 28.17 x 3.53 mm - Viton, Part# 2125026 2 268
27102032 Distributor Spring - Edwards, E1/E2M, Part# 27102032 1 144
29203003 Blade Spring Pin, Edwards, E1/E2M, Part# 29203003 3 629
A01403030 Oil Filter Seal 2 383
A22305008 Filter Assembly E2M 18/28 1 281
27102030 Exhaust Valve Spring - Edwards, E1/E2M, Part# 27102030 2 612
26501032 Coupling Element, Edwards, Welch, E1/E2M, CRVpro, Part# 26501032 1 191
26501029 Valve Pad, Edwards, E1/E2M, Part# 26501029 3 833
02120037 O-ring, 15.6 x 2.4 mm - Viton, Part# 2120037 1 108
22302017 Felt Pad, Edwards, E1/E2M, E1M18, E2M18, E2M28, E2M30 Part# 22302017. 1 300
218990201 Waved Washer 1 183
02120035 O-ring, 13.6 x 2.4 mm - Viton, Part# 02120035 1 179
02122083 O-ring, 69.5 x 3 mm - Viton, Part# 2122083 1 375
00906077 Spring, Stainless Steel, Edwards, E1/E2M, Part# 906077 3 2124
00307046 Spring, Edwards, E1/E2M, Part# 00307046 2 566
29203002 Spring Pin, Edwards, E1/E2M, E1M18, E2M18, Part# 29203002 2 461
20402121FR Edwards Vane, 2nd Stage - GX, Part# 20402121FR 2 0
20402123FR Edwards Vane, 1st Stage - GX, Part# 20402123FR 2 113
20402120FR Vane, Oil pump - GX, Edwards, E1/E2M, E1M18, E2M18, Part# 20402120FR 1 36
25908119 Plug, Oil Drain, RV pump, Edwards, Pfeiffer, Part# 25908119 1 70
A11301045 Ballast Valve PTFE 1 245
02308044 Gas Ballast Filter-Edwards E1/E2M, Part# 2308044 2 802
02308043 Gas Ballast Filter-Edwards E1/E2M, Part# 02308043 2 555
02126116 O-ring, 7.59 x 2.62 mm - Viton, Part# 02126116 2 570
02122108 O-ring, 194.5 x 3 mm - Viton, Part# 2122108 1 178
02120089 O-ring, 99.5 x 3 mm - Buna, Part# 2120089 2 37
02120033 O-ring, 11.6 x 2.4 mm - Buna, Part# 02120033 1 142
02120057 O-ring, 61.6 x 2.4 mm - Buna, Part# 02120057 1 102
02120067 O-ring, 27.5 X 3 mm - Buna, Part# 2120067 1 202
02120078 O-ring, 44.5 X 3 mm - Buna, Part# 02120078 2 552
02120072 O-ring, 35.5 X 3 mm - Buna, Part# 02120072 1 316
Specifications

General product classifications

Manufacturer Precision Plus
Compatible Brands Edwards
Family E1/E2M
Compatible Pump Models E2M18
Category Repair Kits
Subcategory Major Repair / Overhaul Kit
Country of origin US
Product Details

The Major Repair Kit, Edwards E1/E2M 18 Part# 36301800ED is an essential package designed for the repair and maintenance of Edwards E1M 275 and E2M 18 vacuum pump models. This comprehensive kit includes all the necessary components and materials required to perform a major overhaul and repair of the pump. It consists of various parts such as seals, gaskets, O-rings, vanes, springs, bearings, and other essential components that may need replacement or servicing during the repair process. By utilizing the Major Repair Kit, users can effectively restore the performance and efficiency of their E1M/E2M pumps, ensuring reliable and optimal vacuum operation. The kit provides high-quality materials and components, enabling users to maintain their vacuum pump's longevity and reliability.
