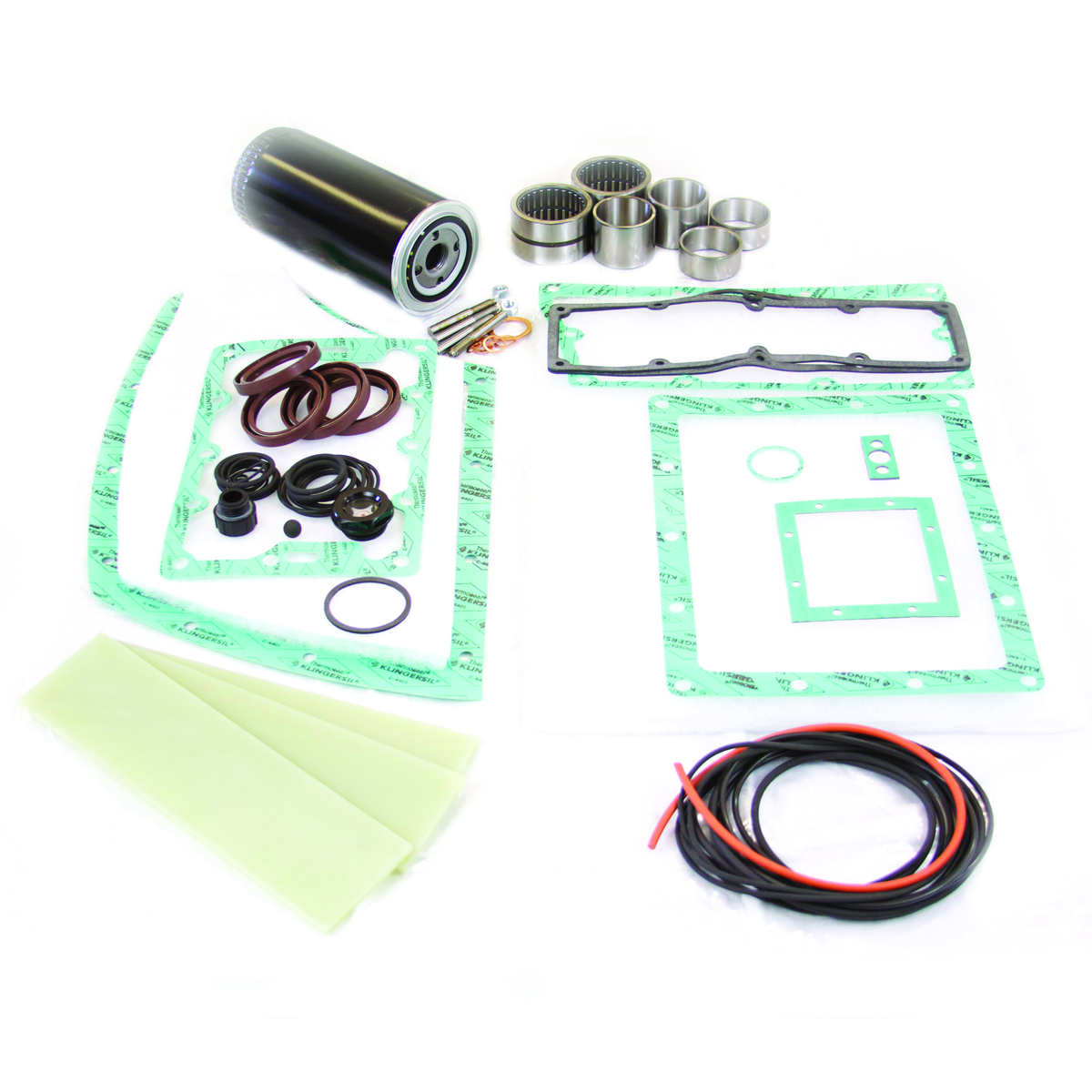

Busch R5 0630 B, Major Repair Kit with GX Vanes - Part # BMK023
For complete kit content details see bill of materials below
| Part Number | Description | Quantity | Qty in stock |
|---|---|---|---|
| 42000700 | Busch Hex Nut, M8 Part# 42000700 | 2 | 111 |
| 72245500 | Busch Vane, 1st Stage - GX Part# 72245500 | 3 | 48 |
| 73001800 | Busch R5 Inlet Ball Valve, Viton - Part# 73001800 | 1 | 27 |
| 710000010 | Oil Drain Plug, 1/2" Nylon | 1 | 150 |
| 48703200 | Busch Shaft Seal, Viton Part# 48703200 | 4 | 186 |
| 486903988 | Busch O-Ring,Viton,266.3 x 3.53mm Part# 486903988 | 2 | 27 |
| 48661100 | O-ring, 97 x 5 mm - Viton, Part# 48661100 | 1 | 18 |
| 48656700 | O-ring, 140 x 5 mm - Viton, Part# 48656700 | 2 | 107 |
| 48656100 | Busch O-Ring,Viton,25 X 2 MM Part# 48656100 | 2 | 182 |
| 48654900 | O-Ring, FKM - Part# 48654900 | 2 | 73 |
| 48652100 | O-Ring,FKM | 4 | 153 |
| 48651200 | Busch O-Ring,Viton,35 X 4 MM Part# 48651200 | 8 | 288 |
| 48650500 | O-ring, FKM - Part# 48650500 | 1 | 172 |
| 48406200 | Busch Ring Gasket Part# 48406200 | 1 | 32 |
| 48404000 | ring Gasket, Busch, R5, 0160B, 0250B, 0160D, Part# 48404000 | 2 | 27 |
| 48403400 | Busch Ring Gasket Part# 48403400 | 2 | 193 |
| 48402900 | Busch Ring Gasket, Copper Part# 48402900 | 1 | 72 |
| 48210600 | Busch Oil Fill Plug Gasket Part# 48210600 | 1 | 96 |
| 48206600-420MM | Busch O-Ring,Silicone,420MM LONG Part# 48206600-420MM | 1 | 43 |
| 43708000 | Busch Taper Pin, Threaded Part# 43708000 | 4 | 232 |
| 47201000 | Busch Bearing Sleeve Part# 47201000 | 2 | 23 |
| 79509 | O-ring, 28 x 3 mm - Viton, Part# 79509 | 1 | 140 |
| 83623 | Busch Sight Glass Part# 83623 | 1 | 27 |
| 481532126 | Busch Float Valve Cover Gasket Part# 481532126 | 1 | 31 |
| 481529712 | Busch Float Valve Gasket Part# 481529712 | 1 | 26 |
| 480537332 | Busch Oil Cooler Gasket Part# 480537332 | 2 | 34 |
| 47201100 | Busch Bearing, Sleeve (Race) Part# 47201100 | 2 | 24 |
| 47300900 | Busch Needle Bearing - No Sleeve (Race) Part# 47300900 | 2 | 32 |
| 48011100 | Busch Cylinder/Exhaust Box Gasket Part# 48011100 | 1 | 37 |
| 48012800 | Busch Gasket Part# 48012800 | 1 | 116 |
| 48013100 | Busch Exhaust Box Cover Gasket Part# 48013100 | 1 | 155 |
| 48013400 | Busch Side Cover Plate Gasket Part# 48013400 | 1 | 68 |
| 48023100 | Busch Oil Sight Glass Gasket Part# 48023100 | 1 | 235 |
| PL23970149 | O-ring, 8 x 2 mm - Viton, Part# PL23970149 | 2 | 84 |
| 500015PP | Sight Glass Assembly | 1 | 544 |
General product classifications
| Part Number Cross-Reference |
23BU-0630B-V
993.048.01 |
| Manufacturer | Precision Plus |
| Compatible Brands | Busch |
| Family | R5 |
| Compatible Pump Models | 0630B |
| Category | Repair Kits |
| Subcategory | Major Kit |
| Country of origin | US |
The Busch Major Repair Kit with GX Vanes (Part number BMK023) is a critical product designed for the maintenance and repair of Busch 0630B vacuum pumps. This comprehensive kit includes all the necessary components and parts required to perform major repairs on the 0630B model. It features GX vanes, which are made from a G11 fiberglass composite laminate with an epoxy resin binder. These GX vanes offer high tensile strength, low moisture absorption, and are comparable to the materials used by major pump manufacturers. With their excellent performance and durability, GX vanes are well-suited for a wide range of standard applications. By utilizing the Busch Major Repair Kit with GX Vanes (Part number BMK023), you can effectively restore and maintain optimal performance in your Busch 0630B vacuum pump.
