Leybold Major Repair Kit with GX Vanes Part# 10171KIT
Leybold Major Repair Kit with GX Vanes Part# 10171KIT

Leybold Major Repair Kit with GX Vanes Part# 10171KIT

10171KIT
USD 358.00

Used on Leybold Trivac D60A, D90A

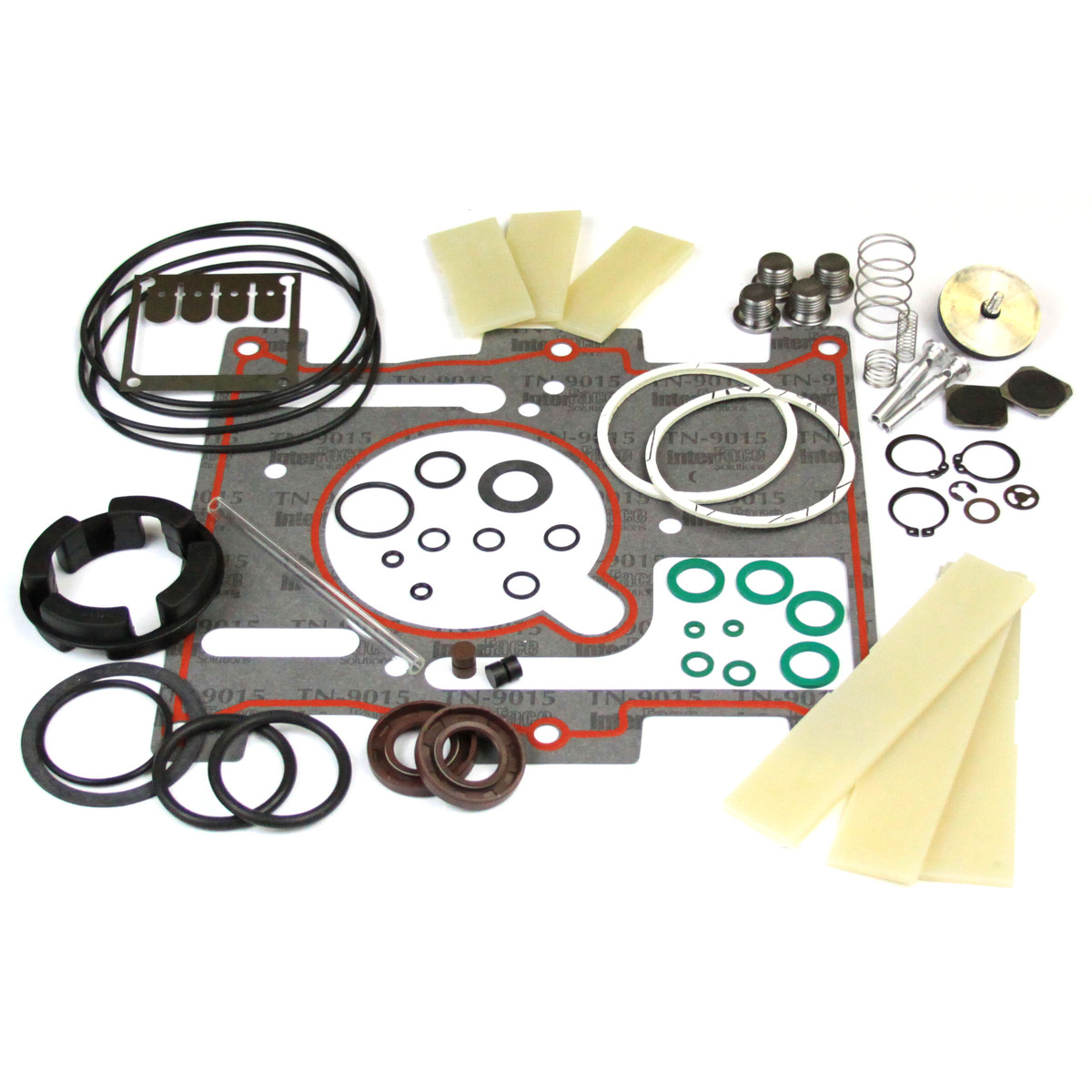

Major Repair Kit with GX Vanes include; coupling element, O-rings, gaskets, shaft seals, Vanes, and other components for major overhaul.

6 In Stock

Click For Availability
Bill Of Material
Part Number Description Quantity Qty in stock
72000129 Mounting Bolt, Leybold, Trivac, Part# 72000129 2 258
23973131V Anti-Suckback Nib, Viton- Leybold, Trivac, Part# 23973131V 1 439
PL23970516 O-ring, 42 x 5 mm - Viton, Part# PL23970516 2 300
PL23970436 O-ring, 27 x 2.5 mm - Viton, Part# PL23970436 1 63
23970411 O-ring, 122 x 3 mm - Viton, Part# 23970411 4 101
PL23970304 O-ring, 45 x 3 mm - Viton, Part# PL23970304 1 253
23970148 O-ring, 5 x 2 mm - Viton, Part# 23970148 2 196
40164117 Plate Valve Assembly, Gas Ballast,  Leybold , Trivac, Part# 40164117 1 51
70100196 Coupling Element, Leybold, Trivac, S30A, S60A, S90A, D30A, D60A, D90A, D30AC, D60AC, D90AC, Part# 70100196 1 133
22162142 Spring, Leybold, Trivac, Part# 22162142 1 65
22162141 Spring - Leybold, Trivac, Part# 22162141 1 256
22162140 Spring, Leybold, Trivac, Part# 22162140 1 182
72211004 Tube Sight Glass, Leybold, Trivac, S30A, S60A, S90A, D30A, D60A, D90A, Part# 72211004 1 50
PL23970147 O-ring, 16 x 2.5 mm - Viton, Part# PL23970147 1 264
P23955165 Leybold Gasket, Viton, Part# P23955165 4 609
23105108 Snap ring, Leybold, Trivac, Part# 23105108 1 61
23103111 Retaining ring, Leybold, Trivac, Part# 23103111 3 50
20010880 Leybold Vane 1st Stage - GX, Part# 20010880 3 52
72590000 Gasket, Viton-Leybold Trivac, Part# 72590000 2 455
72590001 Flat Gasket, Leybold, Trivac, Part# 72590001 2 529
72591000 O-ring, 9.25 x 1.78 mm - Viton, Part# 72591000 2 83
72591001 O-ring, 10.82 x 1.78 mm - Viton, Part# 72591001 2 454
23955171 Sight Glass Gasket-Leybold Trivac, Part# 23955171 1 47
23925225 Gas Ballast Gasket, Flat, Leybold, Trivac, Part# 23925225 1 103
23820158 Intake, Exhaust Gasket, Leybold, Trivac, S30A, S60A, S90A, Part# 23820158 2 50
PL20127105 Plug Screw, Leybold, Part# PL20127105 4 152
23811142 Case Seal Gasket, Leybold, Trivac, Part# 23811142 1 45
PL23953110 Shaft Seal, Viton - 22 x 40 x 7, Leybold, Trivac, Part# PL23953110 2 198
PL20010846 Leybold, 1st & 2nd Stage Vane - GX, Part# PL20010846 3 169
PL40050137 Anti-Suckback Valve Disc, Leybold, Trivac, Part# PL40050137 1 94
PL23973131 Anti-Suckback Nib, Buna, Leybold, Trivac, Part# PL23973131 1 102
PL40050138 Valve - Leybold, Trivac, Part# PL40050138 2 103
PL40164114 Plate Valve, Leybold, Trivac, S30A, D30A, D60A, Part# PL40164114 1 44
Specifications

General product classifications

Part Number Cross-Reference 19106B2
Compatible Brands Leybold
Family Trivac
Compatible Pump Models D60A
D90A
Category Repair Kits
Subcategory Major Kit
Country of origin US

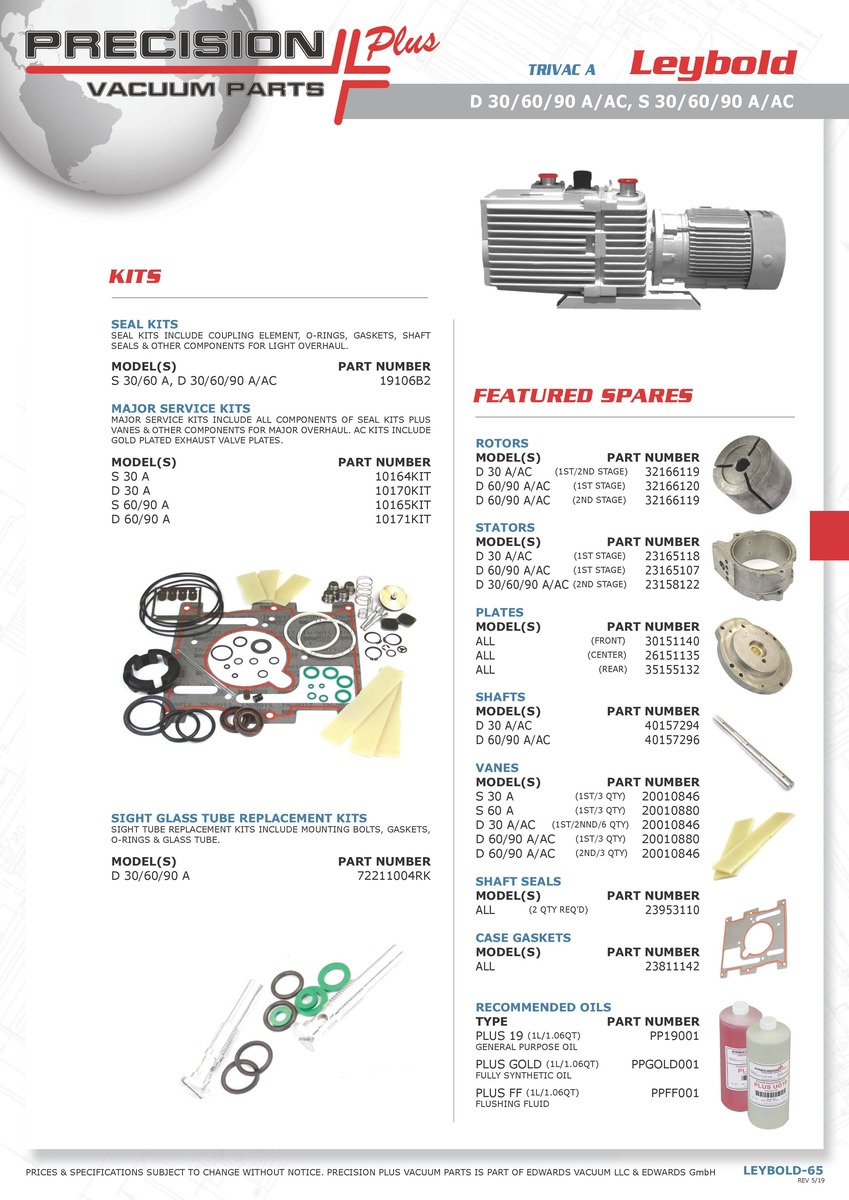

Manual page LEYBOLD-65
Product Details

The Leybold Major Repair Kit with GX Vanes (Part# 10171KIT) is a comprehensive kit designed for conducting a major repair or overhaul on Leybold TRIVAC Pump Models D60A and D90A. This kit includes essential components such as a coupling element, O-rings, gaskets, shaft seals, vanes, and other necessary parts required to restore the pump to optimal working condition. By utilizing this kit, users can conveniently replace worn or damaged components, ensuring the pump's efficient and reliable performance. The Leybold Major Repair Kit with GX Vanes (Part# 10171KIT) provides a convenient solution for comprehensive maintenance and repair of the Leybold D60A and D90A pump models, allowing for the restoration of their functionality and prolonging their service life.
