Booster Repair Kit - Edward EH250/500 & QMB250/500 Part# 30151800
USD 592.00
Used on Edwards EH Booster,QMB Blower QMB250, EH250, QMB500, EH500

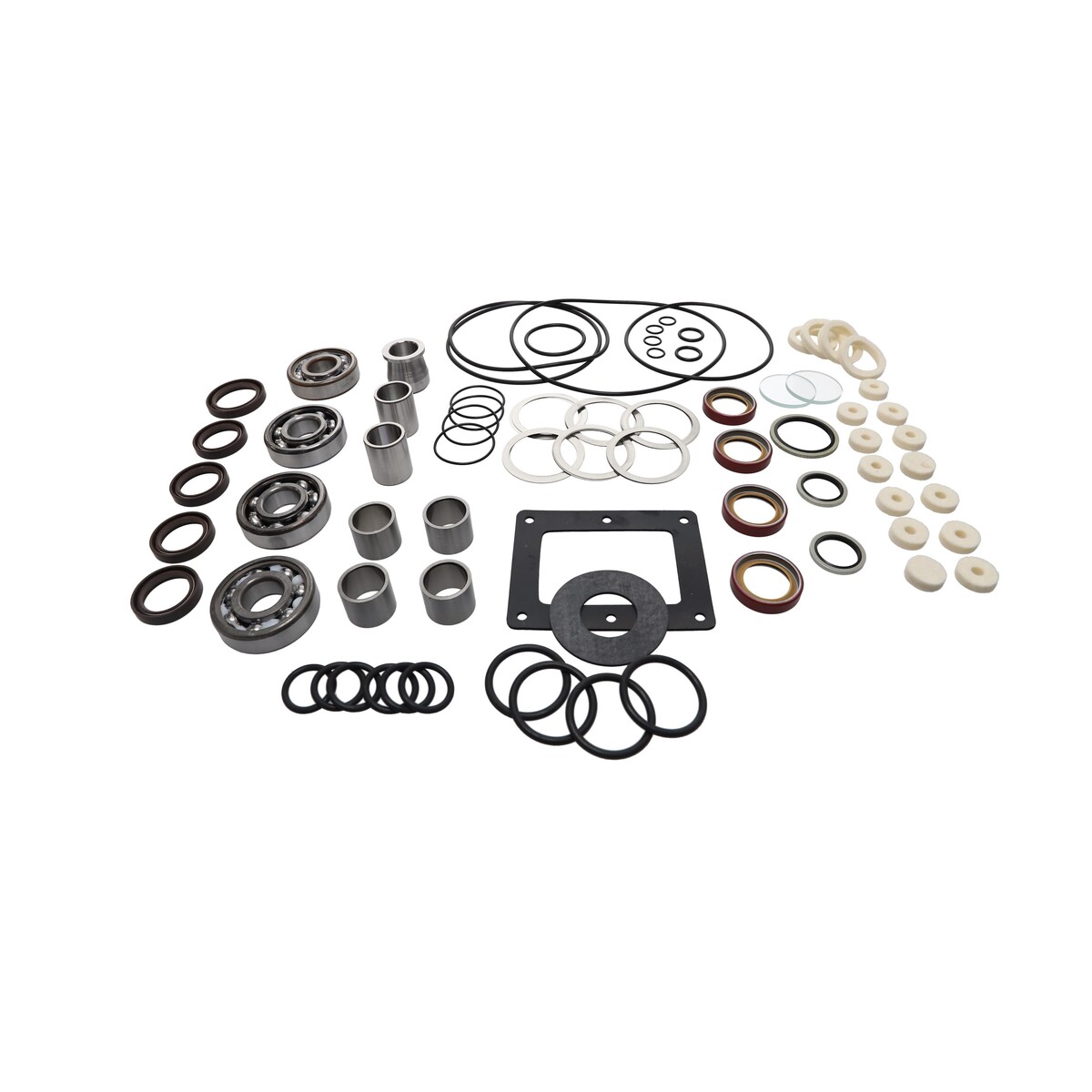

Booster Repair Kit includes; shaft seals, gaskets, sleeves, shims, filers, and bearings (as required) for a complete overhaul of both the drive section and pumping
Booster Repair Kit includes; shaft seals, gaskets, sleeves, shims, filers, and bearings (as required) for a complete overhaul of both the drive section and pumping
Added to Your Shopping Cart
| Part Number | Description | Quantity | Qty in stock |
|---|---|---|---|
| 02126028 | O-Ring, 31.34 x 3.53 mm - Viton | 4 | 348 |
| 02126121 | O-ring, 15.54 x 2.62 mm - Viton, Part# 2126121 | 2 | 131 |
| 20403010K | Ball Bearing, PFPE, Edwards, EH Booster, QMB Blower, Part# 20403010K | 2 | 86 |
| 22302015 | Felt Filter, Edwards, EH Booster, QMB Blower, Part# 22302015 | 11 | 592 |
| 20403025 | Ball Bearing, S-Row, Edwards, EH Booster, QMB Blower, Part# 20403025 | 2 | 71 |
| 23714034 | O-ring, 19 X 3 mm - Viton, Part# 23714034 | 6 | 677 |
| 23714036 | O-ring, 150 x 3 mm - Viton, Part# 29361336 | 1 | 120 |
| 23714037 | O-ring, 233 X 3 mm - Viton, Part# 23714037 | 1 | 73 |
| 27159547 | Gasket, Edwards, EH Booster, QMB Blower, Part# 27159547 | 1 | 106 |
| 27165008 | Shim, 0. 20 mm, Edwards, EH Booster, QMB Blower, Part# 27165008 | 3 | 636 |
| 27165010 | Shim, 0. 35 mm, Edwards, EH Booster, QMB Blower, Part# 27165010 | 3 | 251 |
| 27165011 | Shim, 0. 40 mm, Edwards, EH Booster, QMB Blower, Part# 27165011 | 3 | 267 |
| 27165018 | Shim, 0. 30 mm, Edwards, EH Booster, QMB Blower, Part# 27165018 | 3 | 256 |
| A27802735 | Hardened Sleeve | 1 | 101 |
| 27159438 | Gasket, Edwards, Part# 27159438 | 1 | 65 |
| 02122091 | O-ring, 109.5 x 3 mm - Viton, Part# 2122091 | 1 | 122 |
| 02122009 | O-ring, 11.1 x 1.6 mm - Buna, Part# 02122009 | 4 | 378 |
| 02120077 | O-ring, 42.5 X 3 mm - Buna, Part# 2120077 | 1 | 386 |
| 02120023 | O-ring, 35.1 x 1.6 mm - Buna, Part# 02120023 | 4 | 193 |
| 02109052 | Shaft Seal, Teflon | 4 | 1343 |
| A22302016 | Filter | 2 | 279 |
| A20405049 | Inner Ring | 4 | 358 |
| 27165009 | Shim, 0. 25 mm, Edwards, EH Booster, QMB Blower, Part# 27165009 | 3 | 176 |
| 27165032 | Shim, 0. 125 mm, Edwards, EH Booster, QMB Blower, Part# 27165032 | 3 | 247 |
| 23754016 | Dowty Seal, Buna, Edwards, Part# 23754016 | 2 | 111 |
| 02104008 | Dowty Seal, Buna, Edwards, EH Booster, QMB Blower, E1/E2M, Part# 02104008 | 1 | 117 |
| A29201004 | Edwards Sight Glass, Part # A29201004 | 2 | 979 |
| 22302005 | Edwards Dust Seal, Part# 22302005 | 4 | 669 |
| 02109143 | Shaft Seal, Bidirectional | 1 | 61 |
| 02109142 | Shaft Seal, 25x35x7mm, Edwards, EH Booster, QMB Blower, Part# 02109142 | 4 | 131 |
| A27801725 | Sleeve Spare PK2 - (Not for sale) | 1 | 46 |
General product classifications
| Part Number Cross-Reference |
A30151820
A30151810 A30151800 23E-EH250-COMBO |
| Manufacturer | Precision Plus |
| Compatible Brands | Edwards |
| Family |
EH Booster
QMB Blower |
| Compatible Pump Models |
QMB250
EH250 QMB500 EH500 |
| Category | Repair Kits |
| Subcategory | Booster Kit |
| Country of origin | US |
The Major Repair Kit with part number 30151800 is designed specifically for the Edward EH250 Booster and QMB Blower. It includes various components such as shaft seals, gaskets, sleeves, shims, filters, and bearings (as needed) to perform a comprehensive overhaul of both the drive section and pumping components. This kit is compatible with Pump Models QMB250, EH250, QMB500, and EH500. It provides all the essential parts required to repair and restore the functionality of the booster, ensuring efficient operation.
